BDS 2.0 Leveling Kit, Dual Steering Stabilizer, HD Adjustable Track Bar

Step-by-Step Install

December 2018 Installs, Feature Ryan Harris

By Ryan Harris

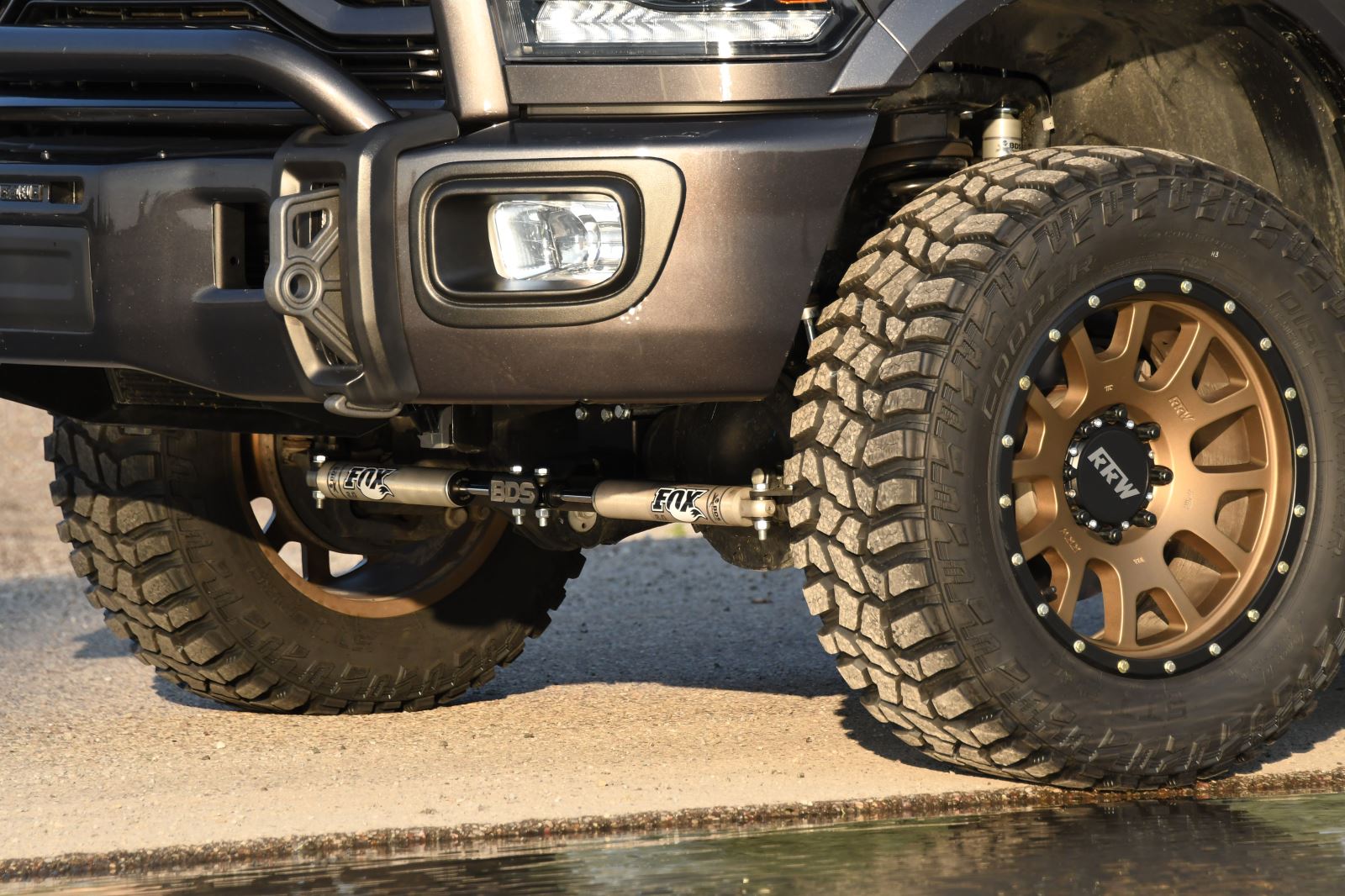

            A quick way to gain a level stance for increased tire and ground clearance is to install a BDS 2.0 leveling kit with dual steering stabilizer and an adjustable track bar. This also makes a huge improvement in handling and the ability to get the correct alignment.

            In the October issue of Diesel Tech Magazine we focused on the complete truck build of our Mountain Ram. Here we break down the six-hour install of the leveling kit, steering stabilizer and adjustable track bar.

 DSC_6990

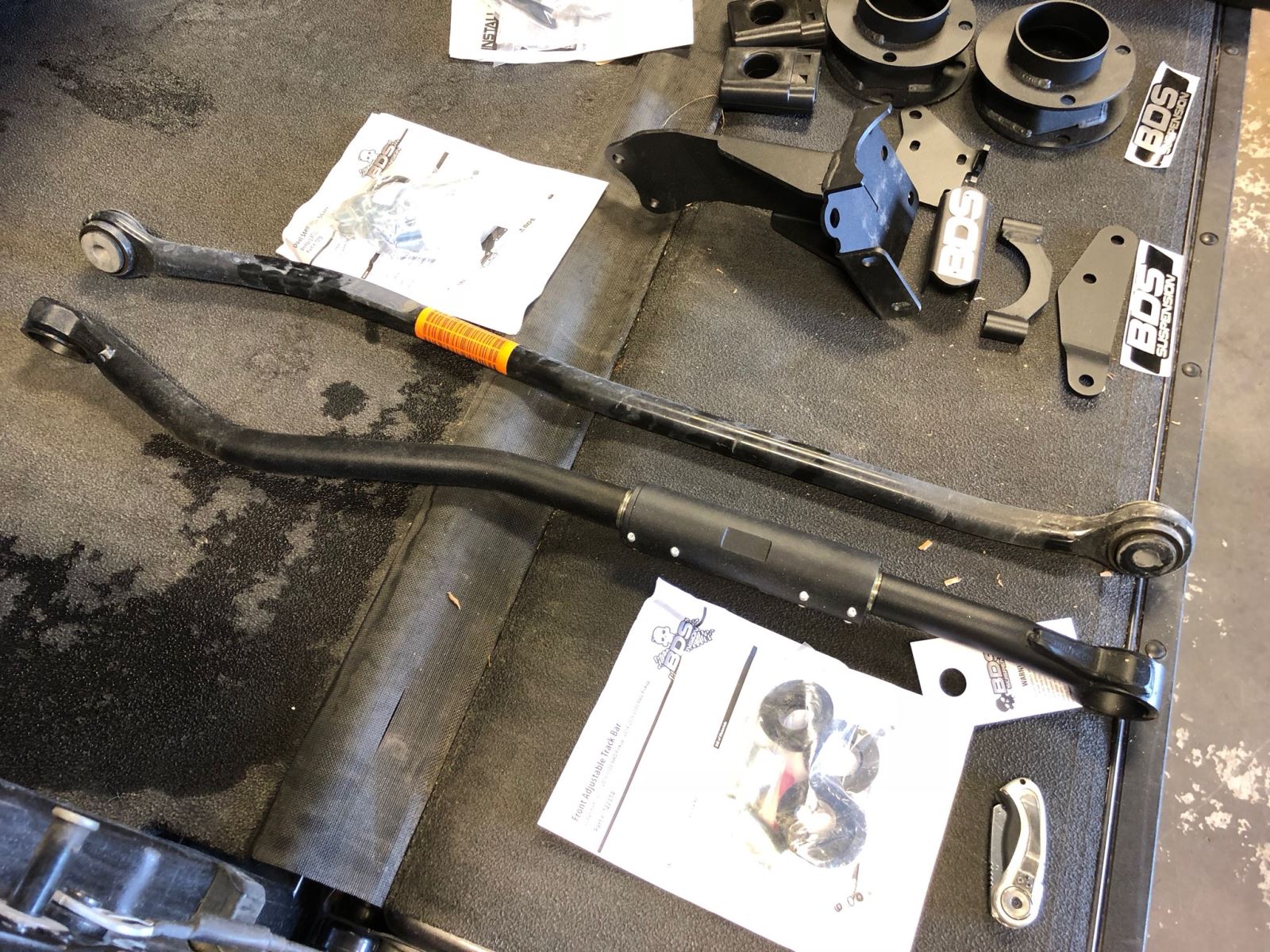

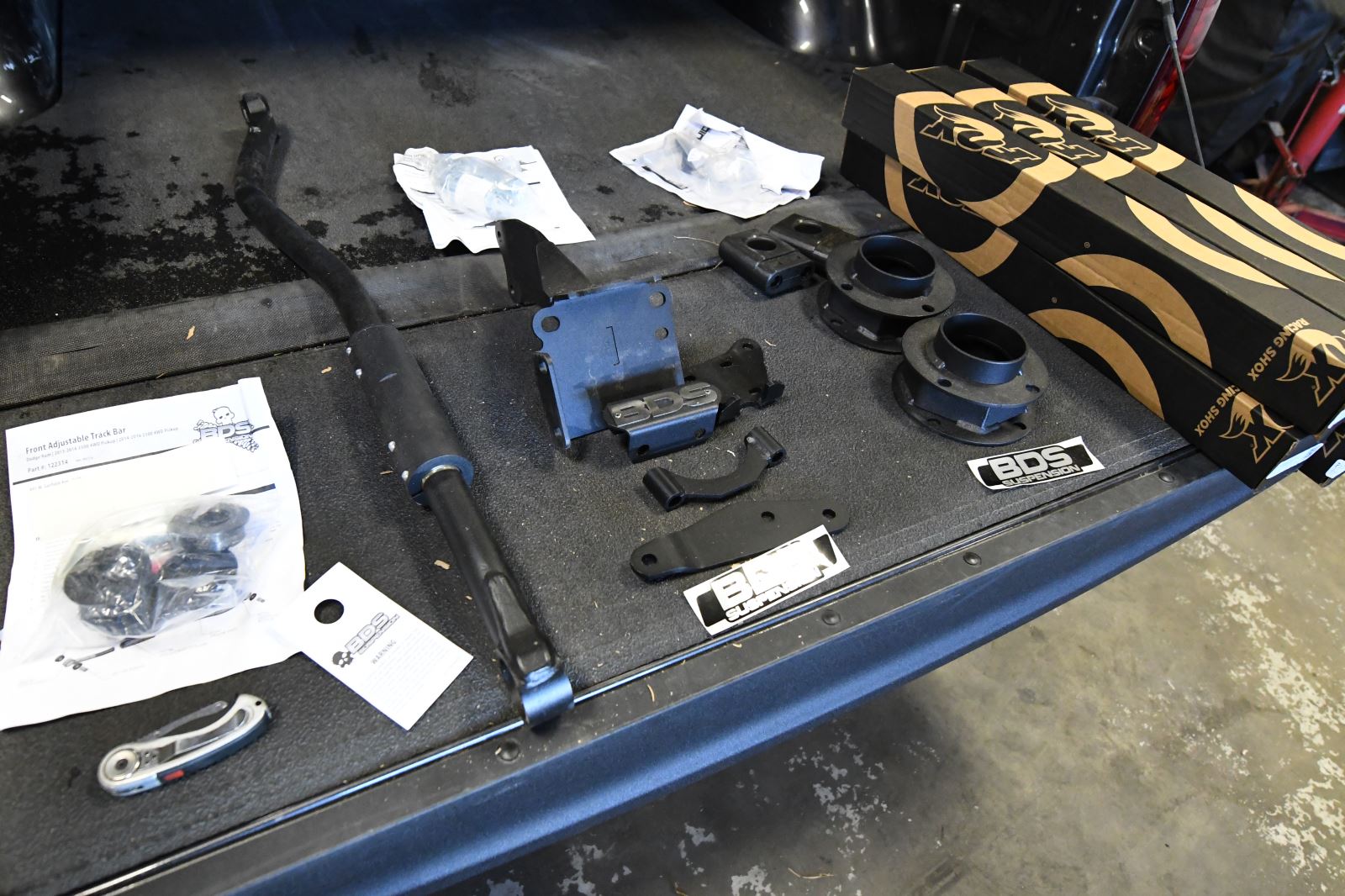

Before you begin, lay out all your kit components and make sure you have everything shown in the instruction packets. Gather all the tools you need. Support truck under the frame rails, put jack stands under the axle.

 DSC_6994

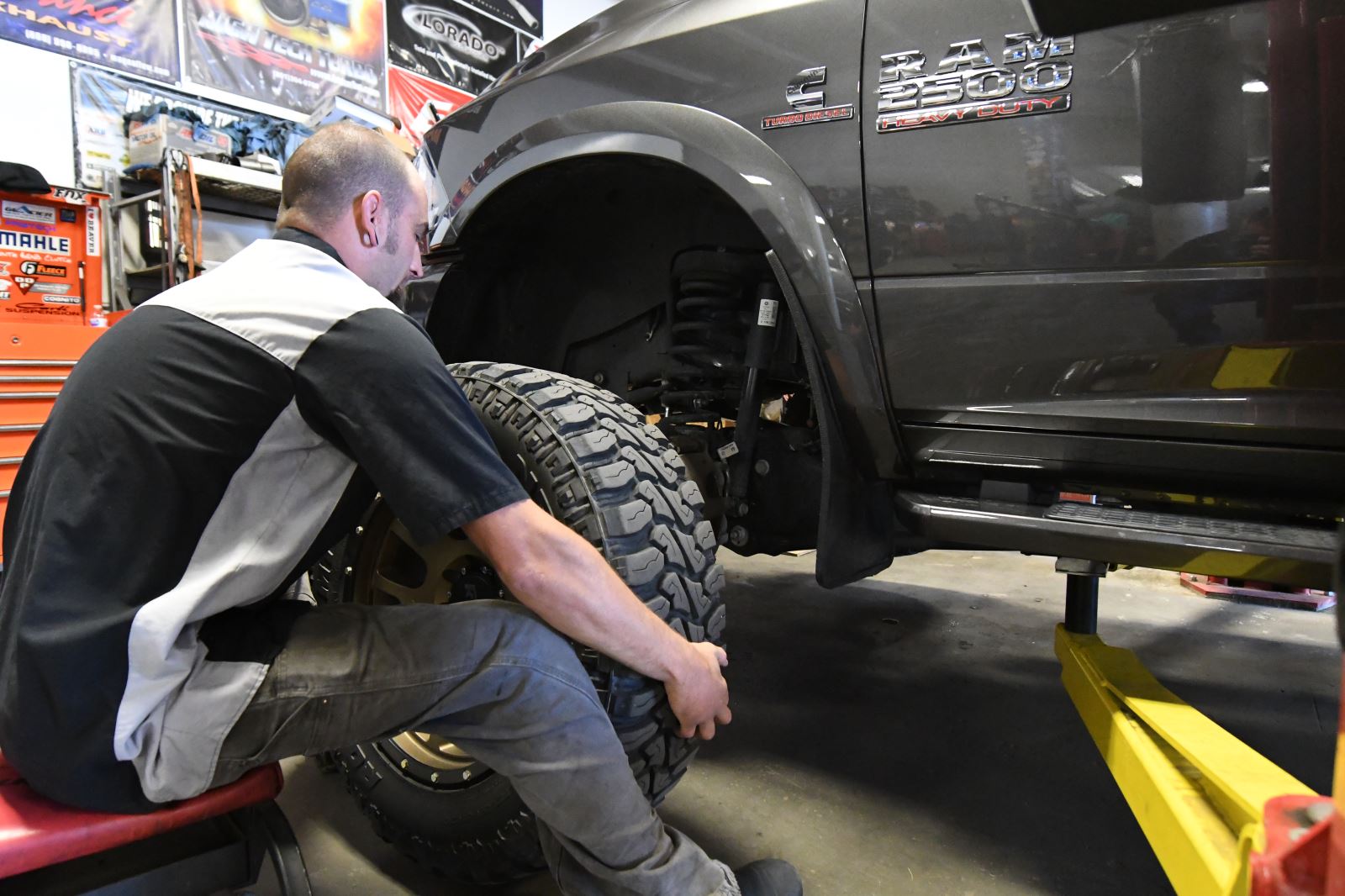

1 Raise front end. Remove front wheels.

 DSC_6999

2 Remove front shock absorbers.

 DSC_7000

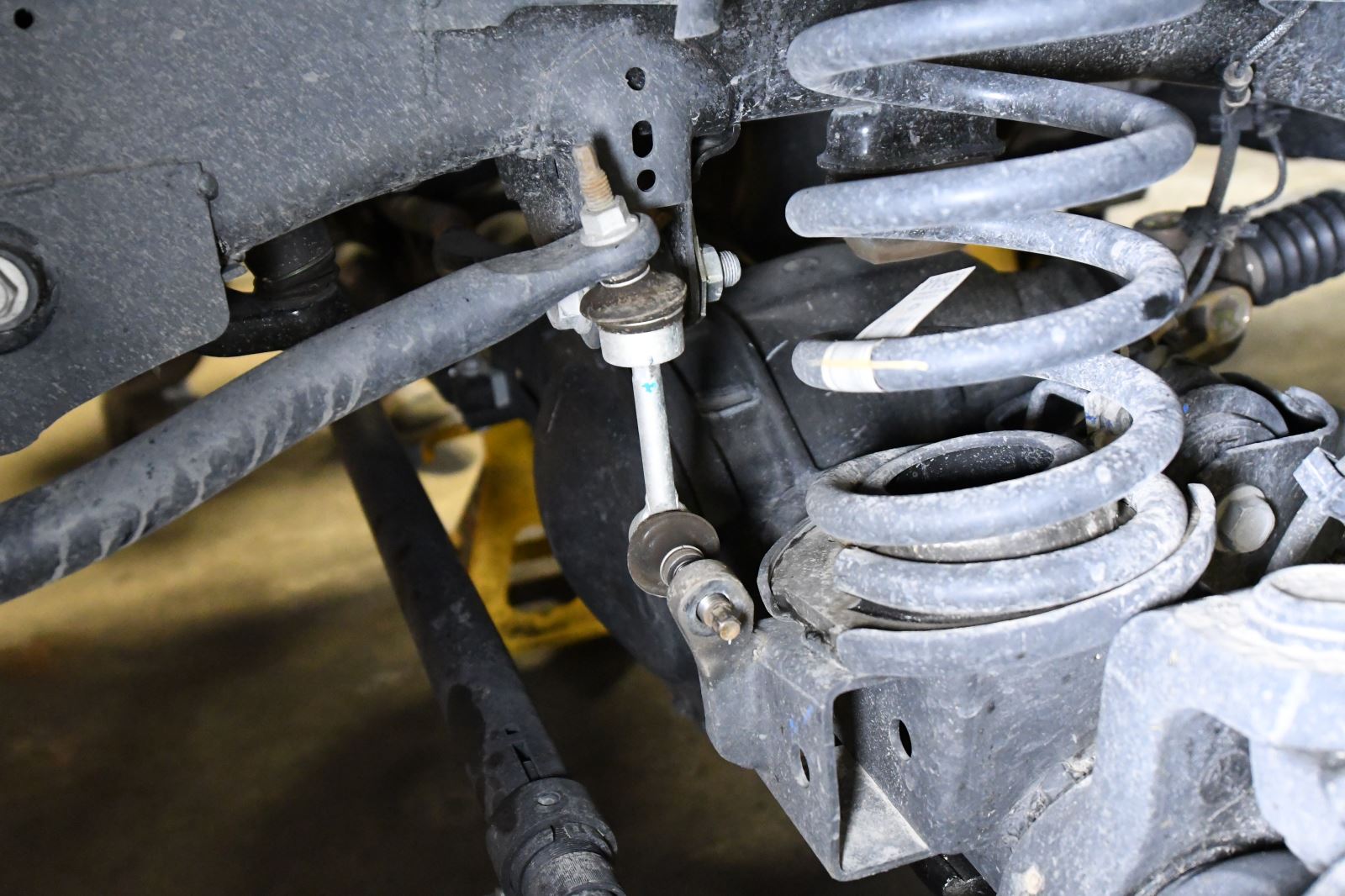

3 Disconnect sway bar lower end links, both sides.

 DSC_7005

4 Disconnect sway bar upper links, both sides.

 DSC_7006

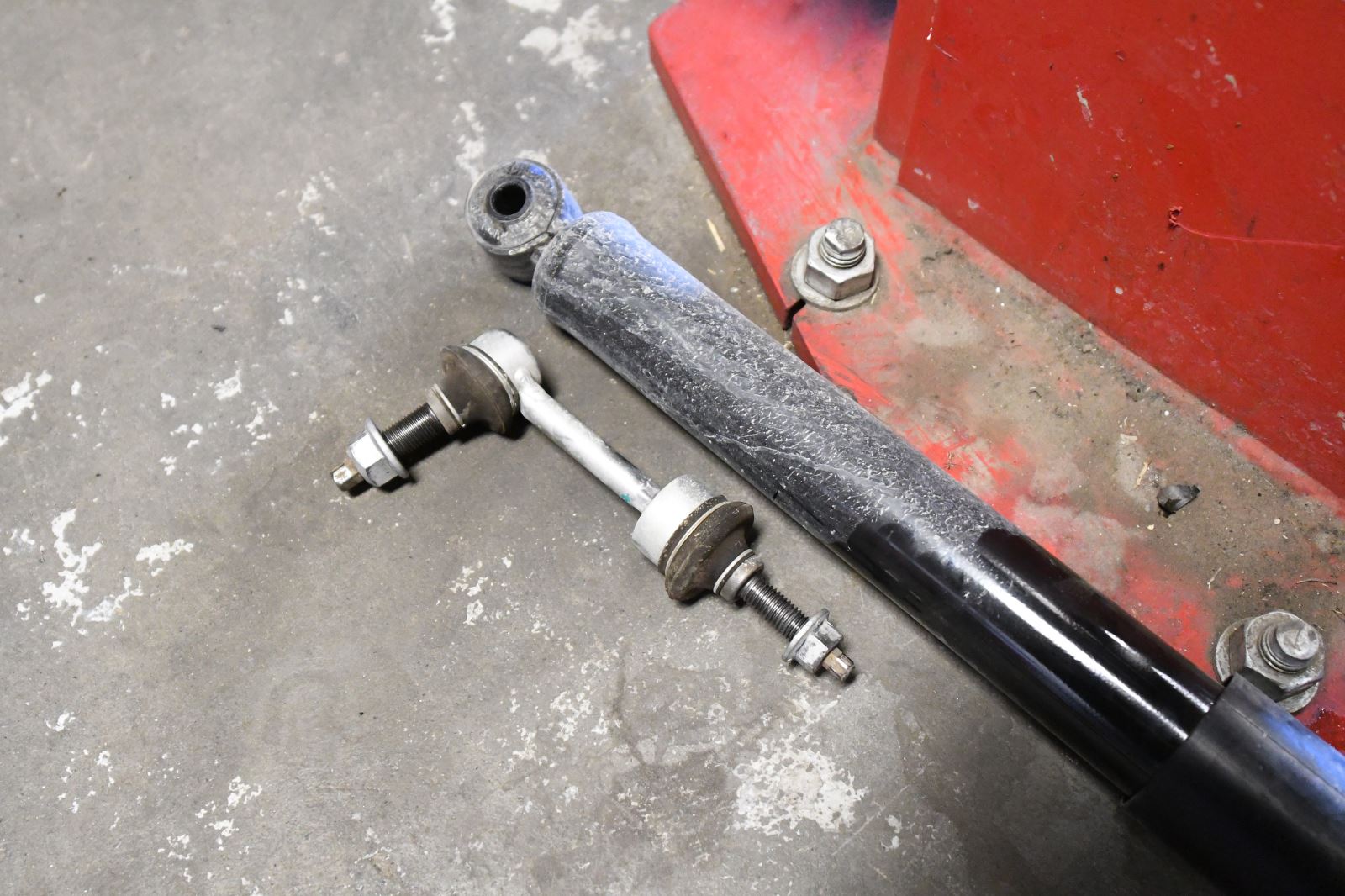

5 Remove sway bar end links, both sides.

IMG_0032

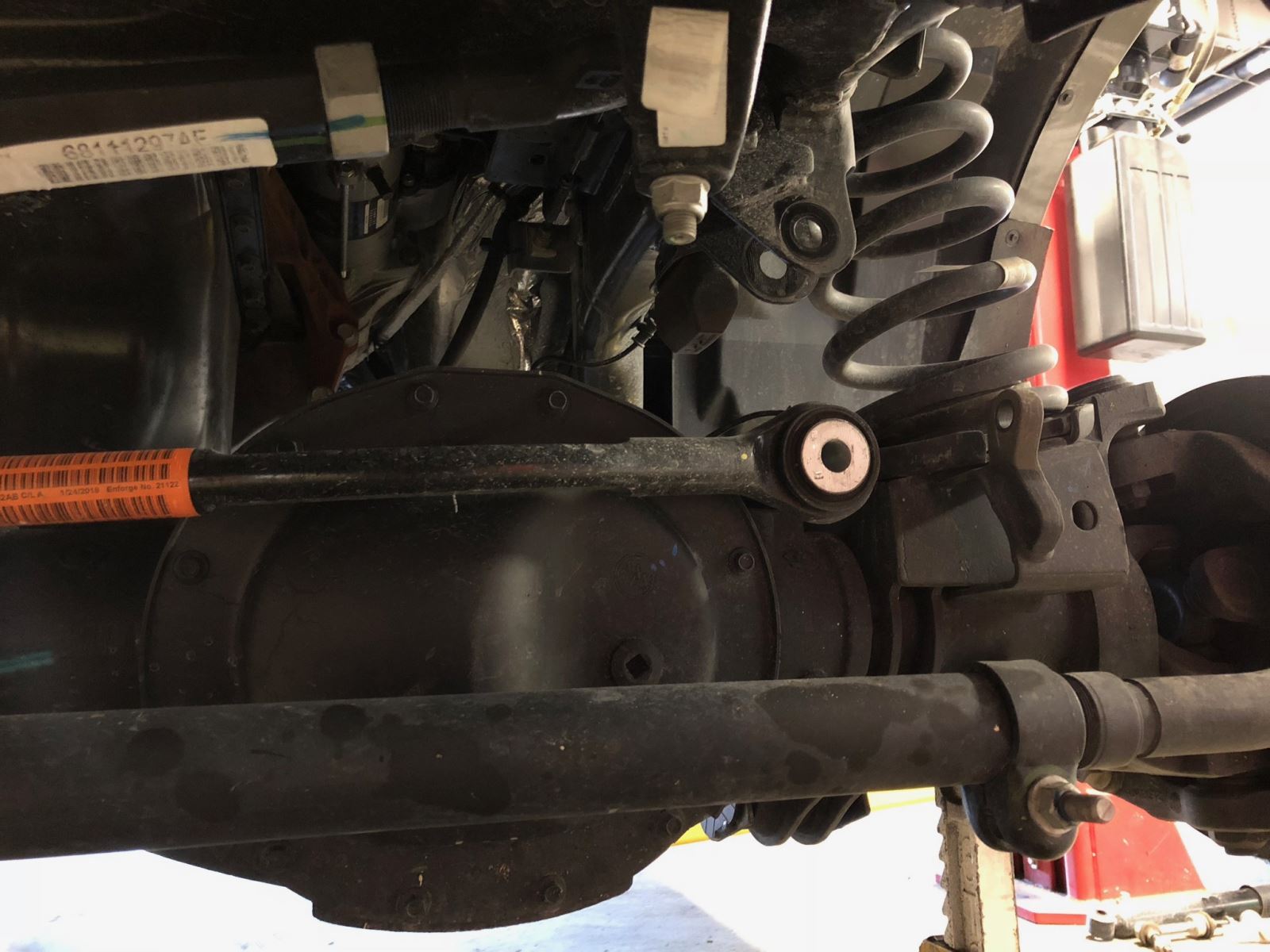

6 Disconnect driver’s side of stock track bar.

 IMG_0035

7 Disconnect passenger side track bar.

 IMG_0036

8 Remove stock track bar.

IMG_0038

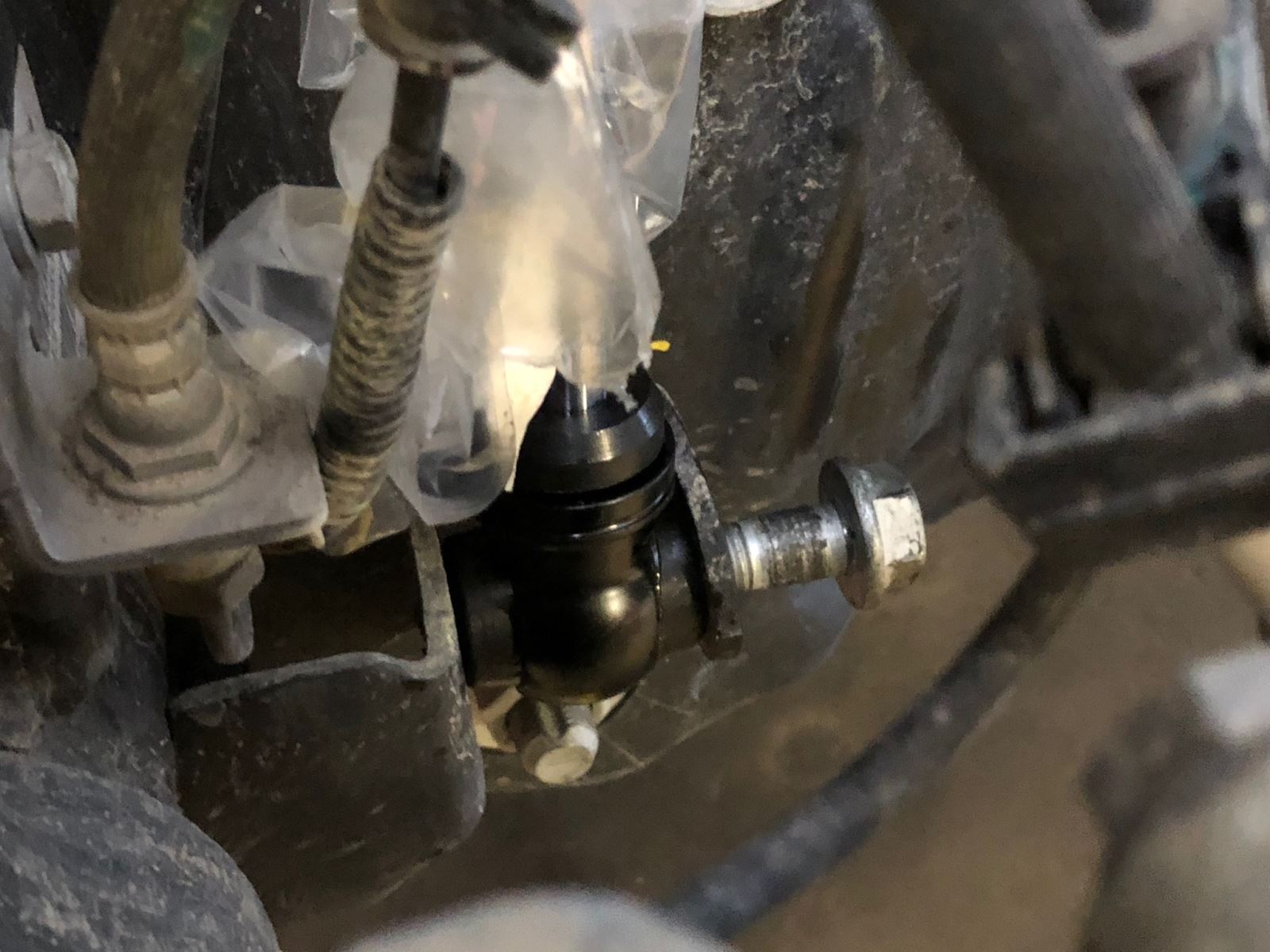

9 Disconnect steering drag link from passenger side hub carrier. Lift frame of truck.

 IMG_0039

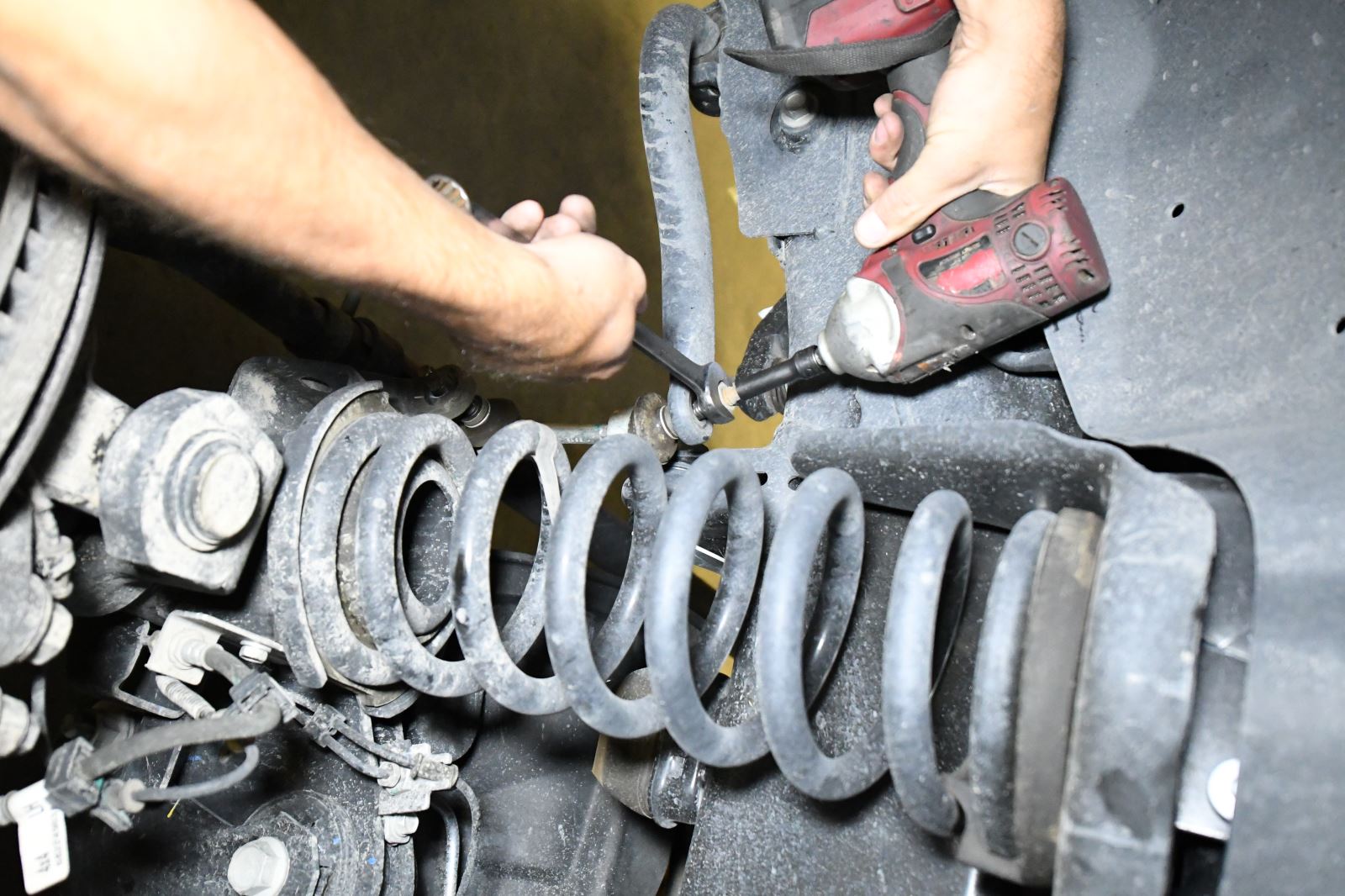

10 Remove front springs and top spring isolator.

 IMG_0042

11 Remove front bump stops. Pull down and they pop out.

IMG_0043

12 Apply grease to the BDS bump stops. Push them up into the holders. Might need a pry bar.

 IMG_0046

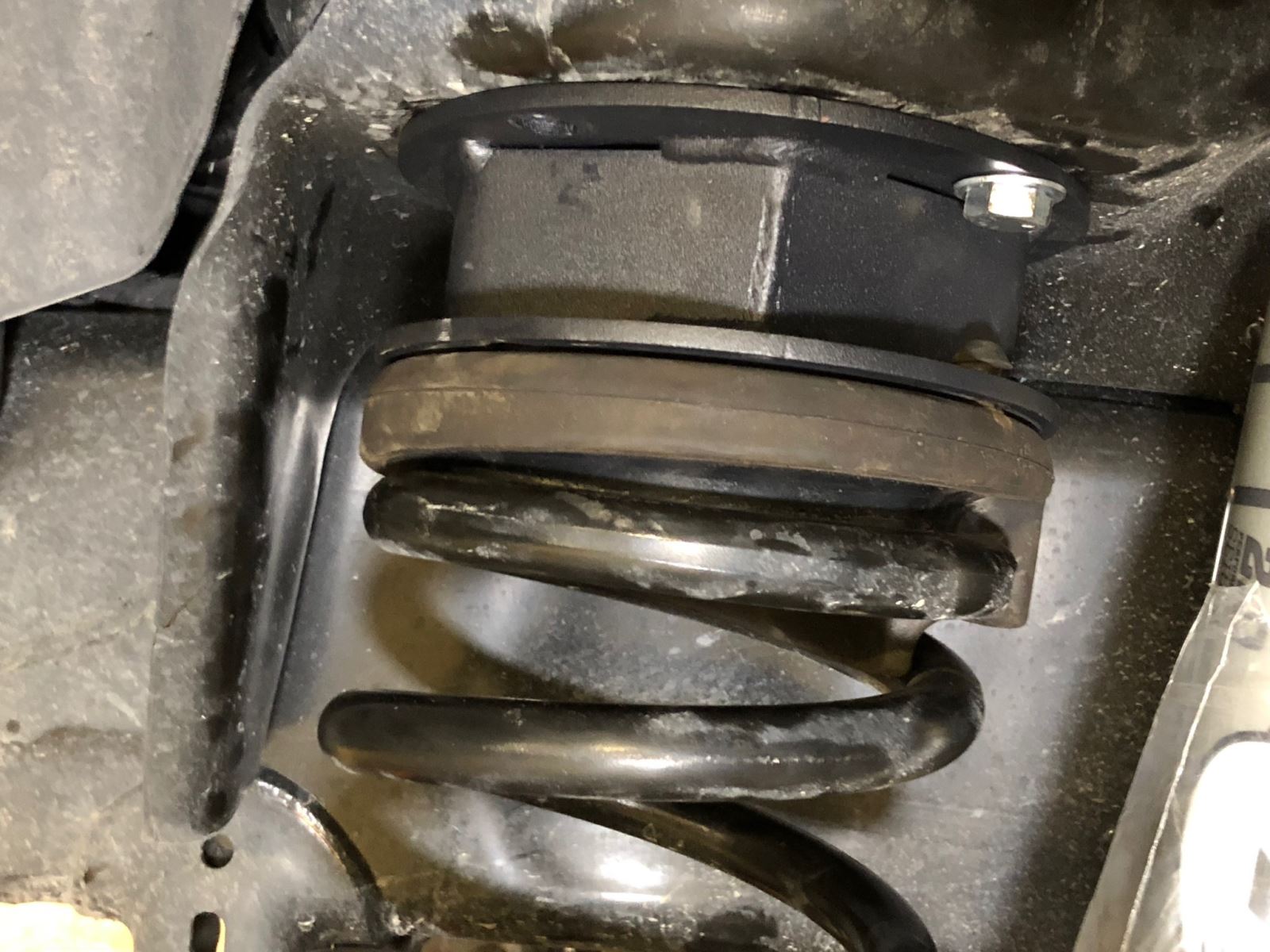

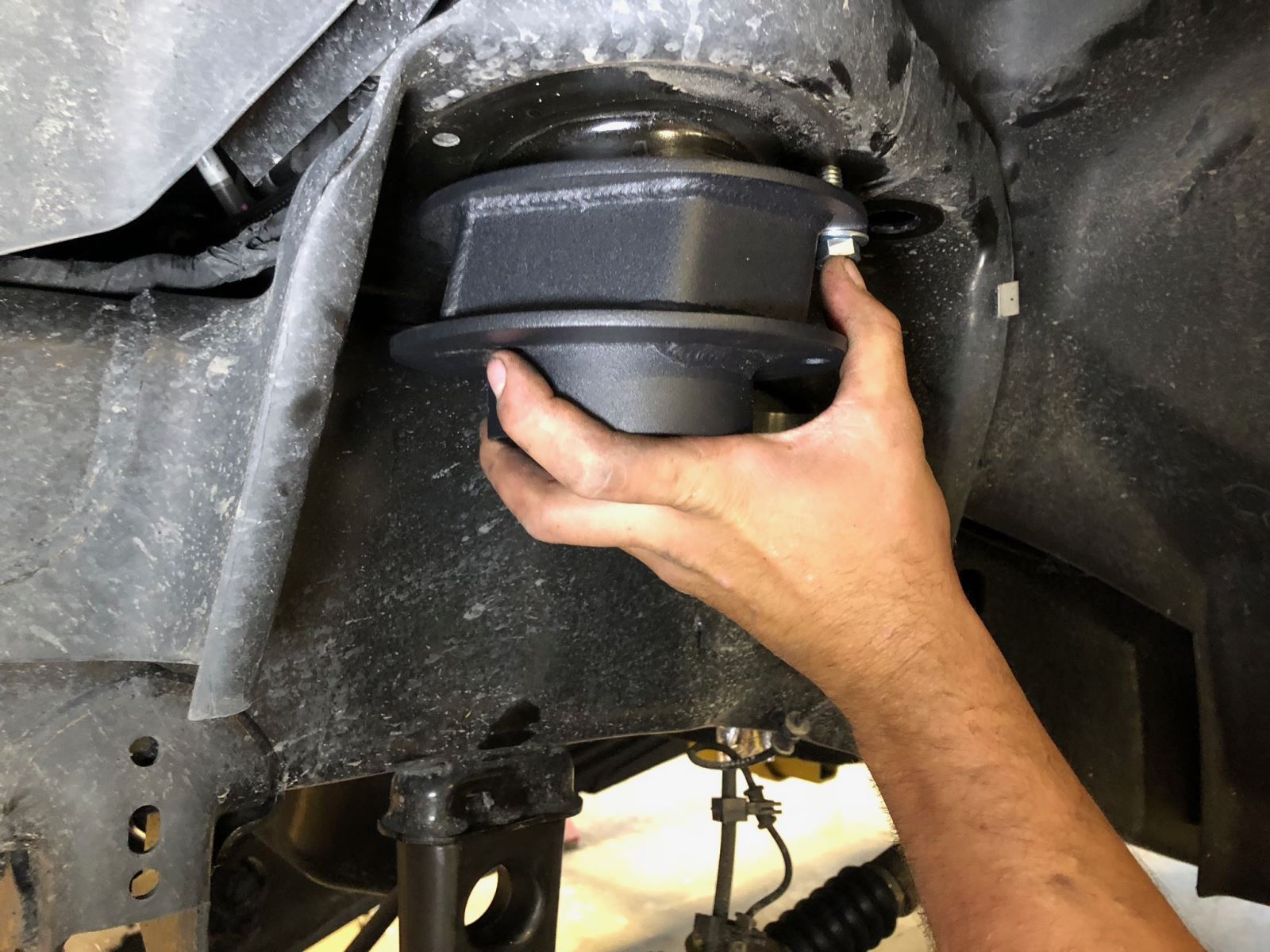

13 Install BDS spring spacers into the upper spring mounts. Leave the bolt loose.

 IMG_0048

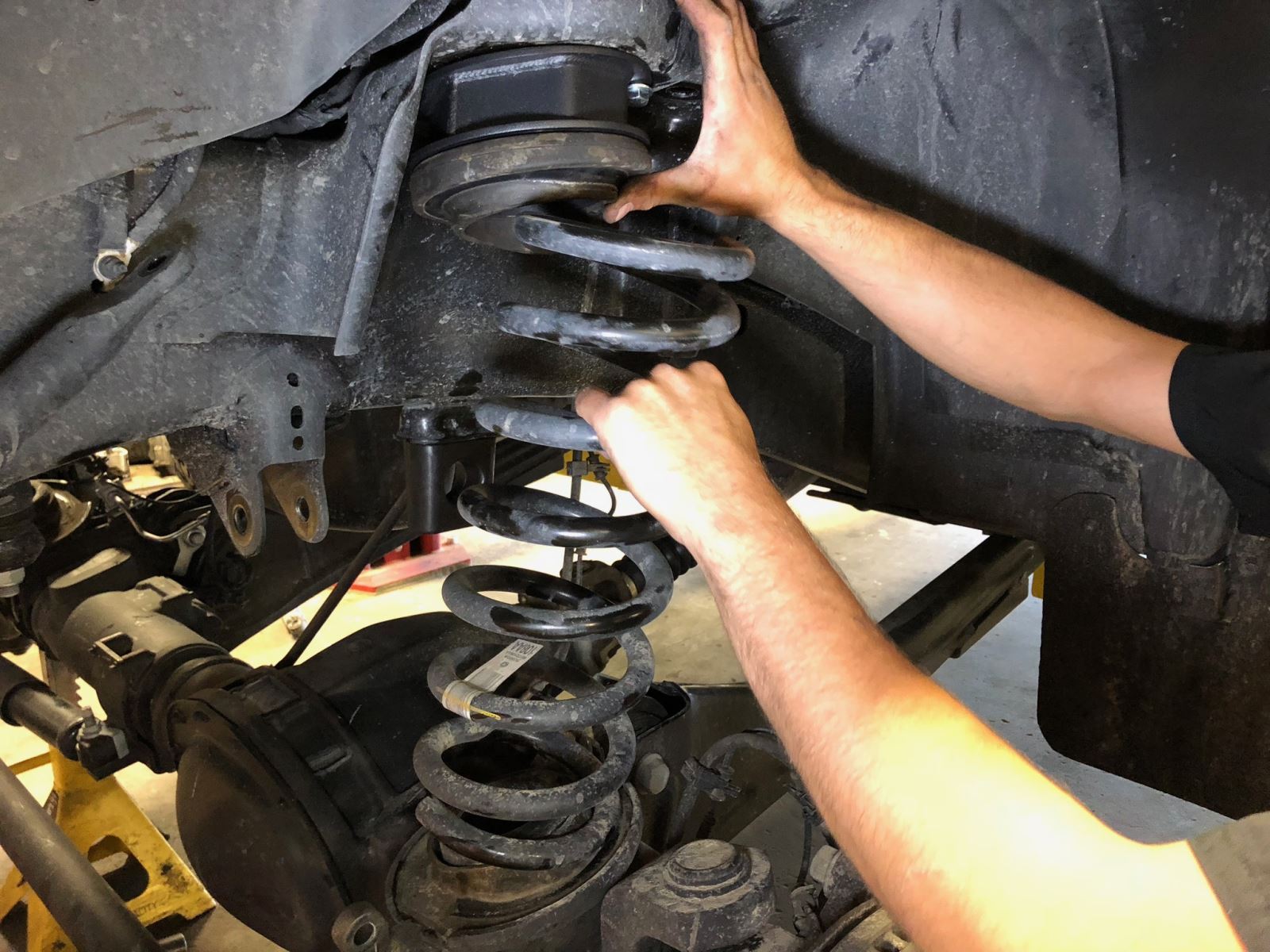

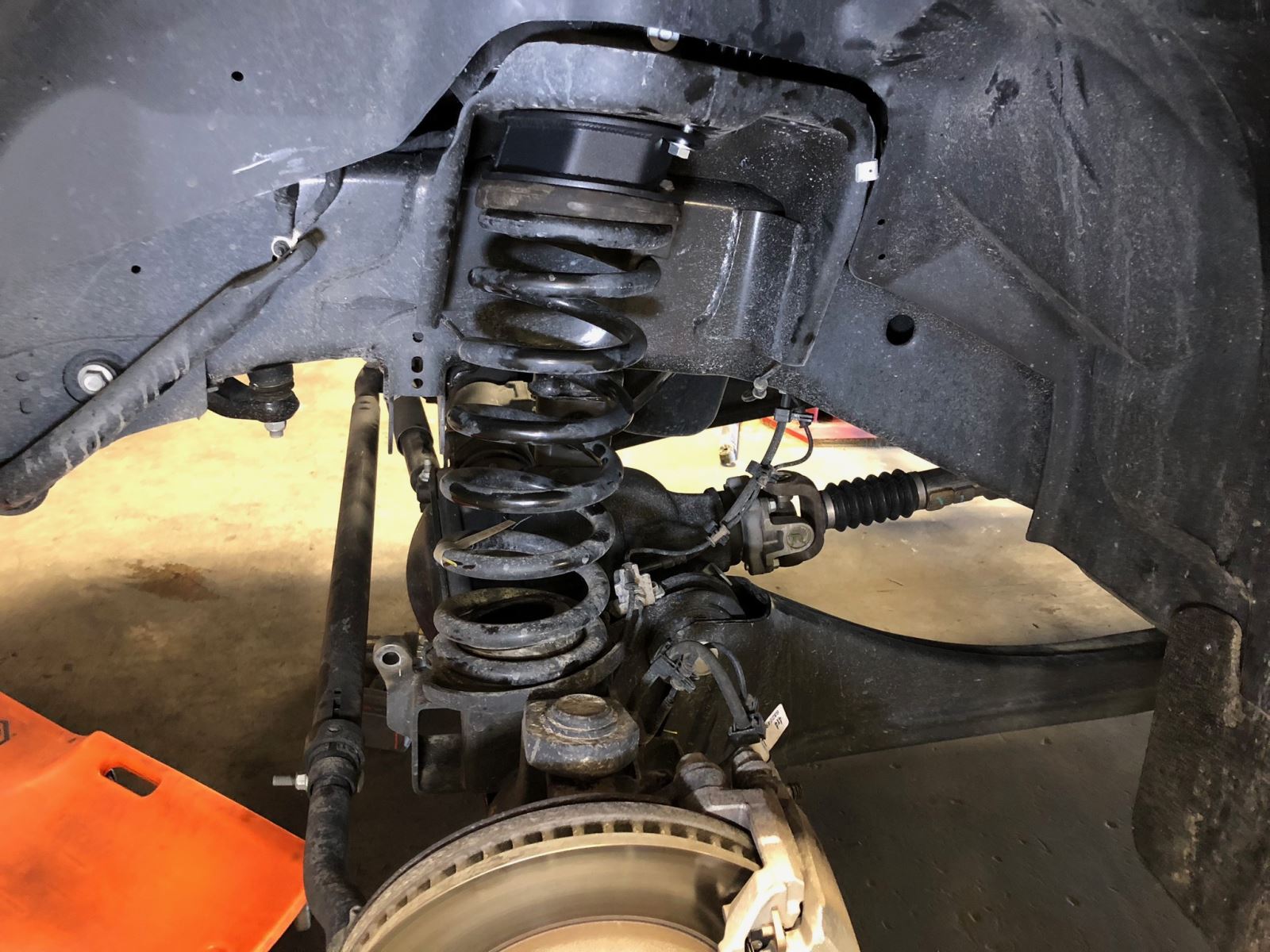

14 Reinstall OEM springs. Line the springs up with the isolator.

 IMG_0051

15 Need help on this step. Have someone watch the spring alignment as the frame of the truck is slowly lowered back onto the springs.

 IMG_0096

16 Tighten spacer bolt, both sides.

 IMG_0053

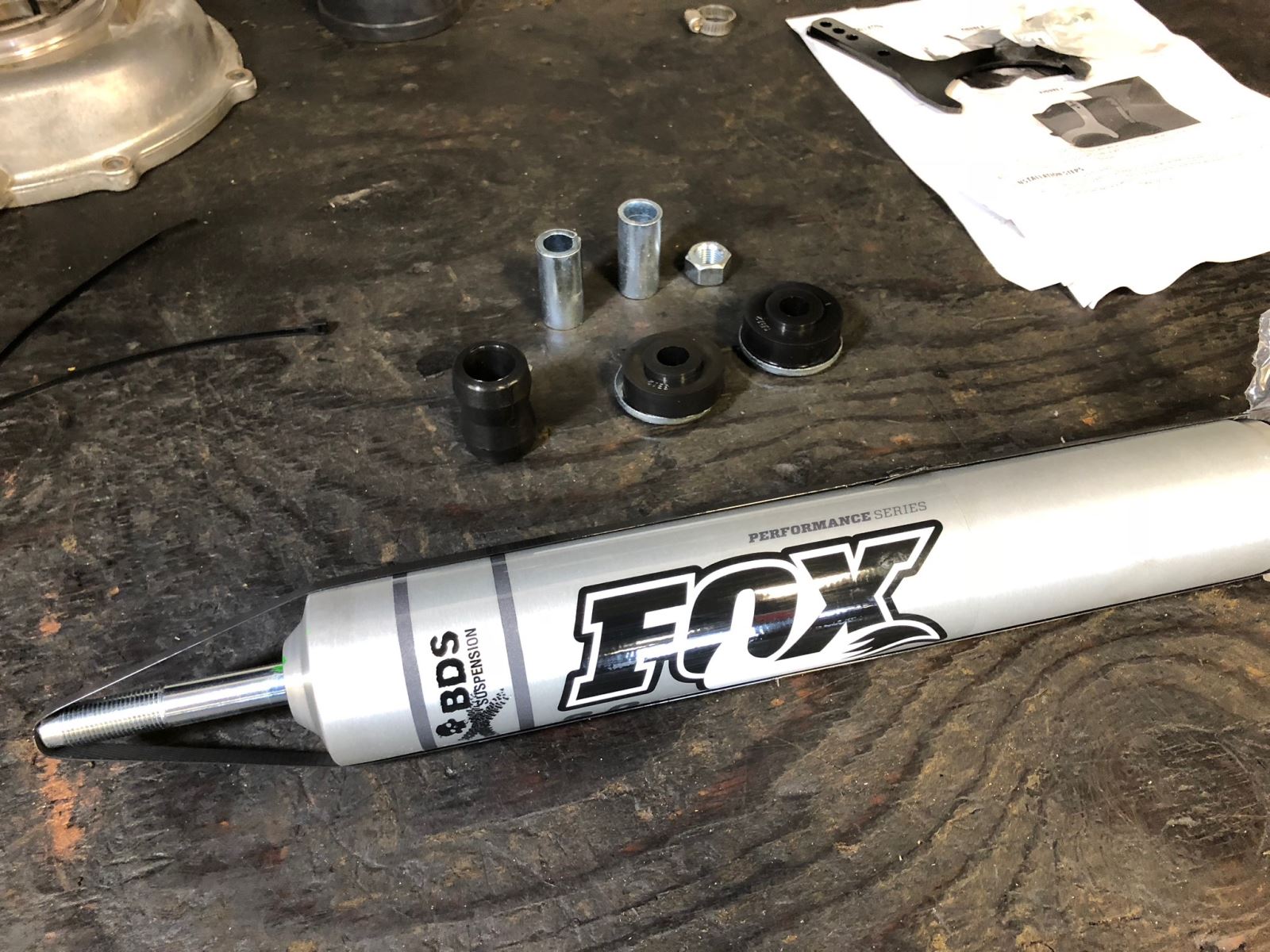

17 Prep the shocks for installation. Leave the plastic wrap on throughout the installation.

 IMG_0054

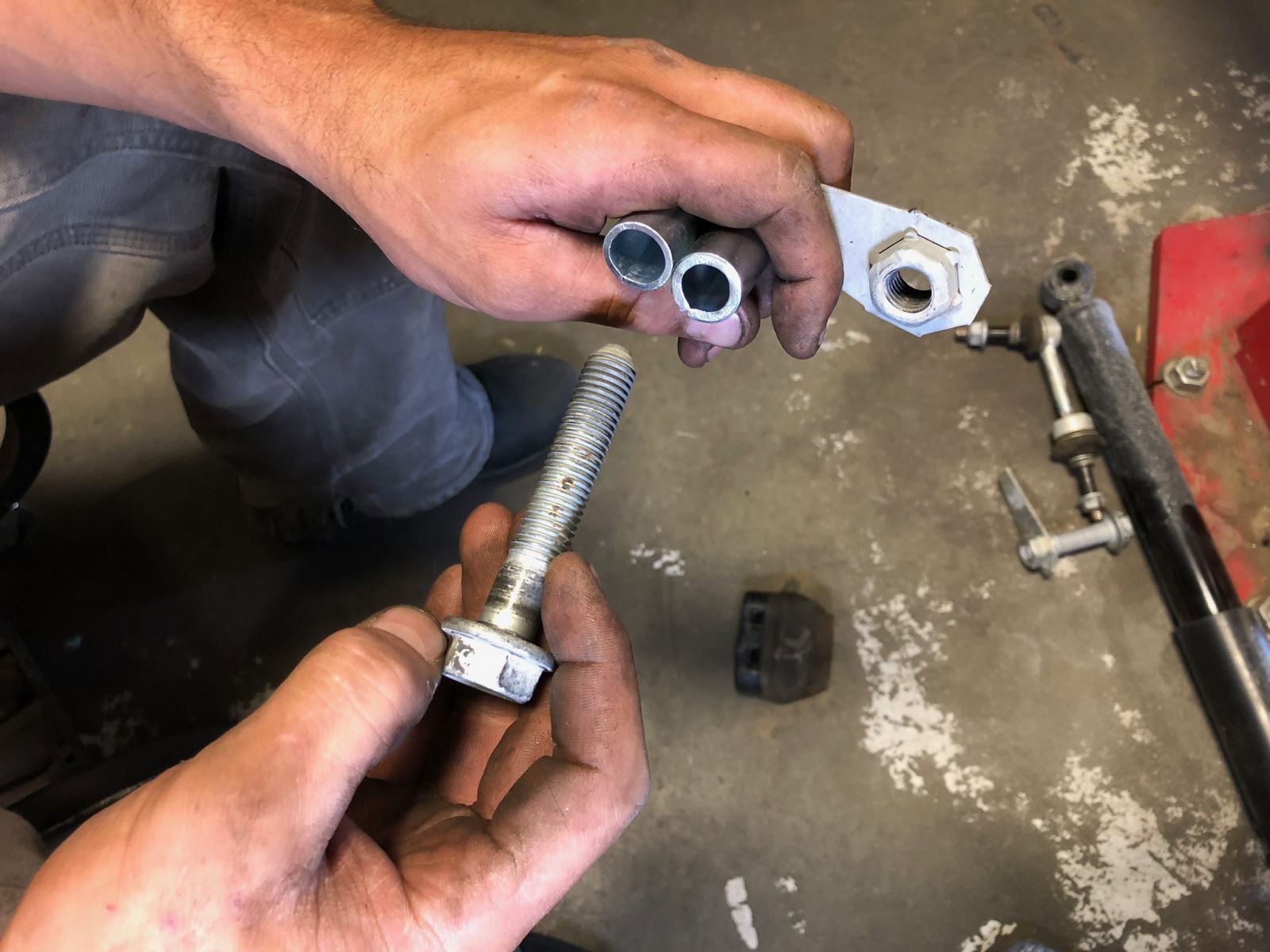

18 The shocks come with two bolt sleeves. Choose the right one.

IMG_0056

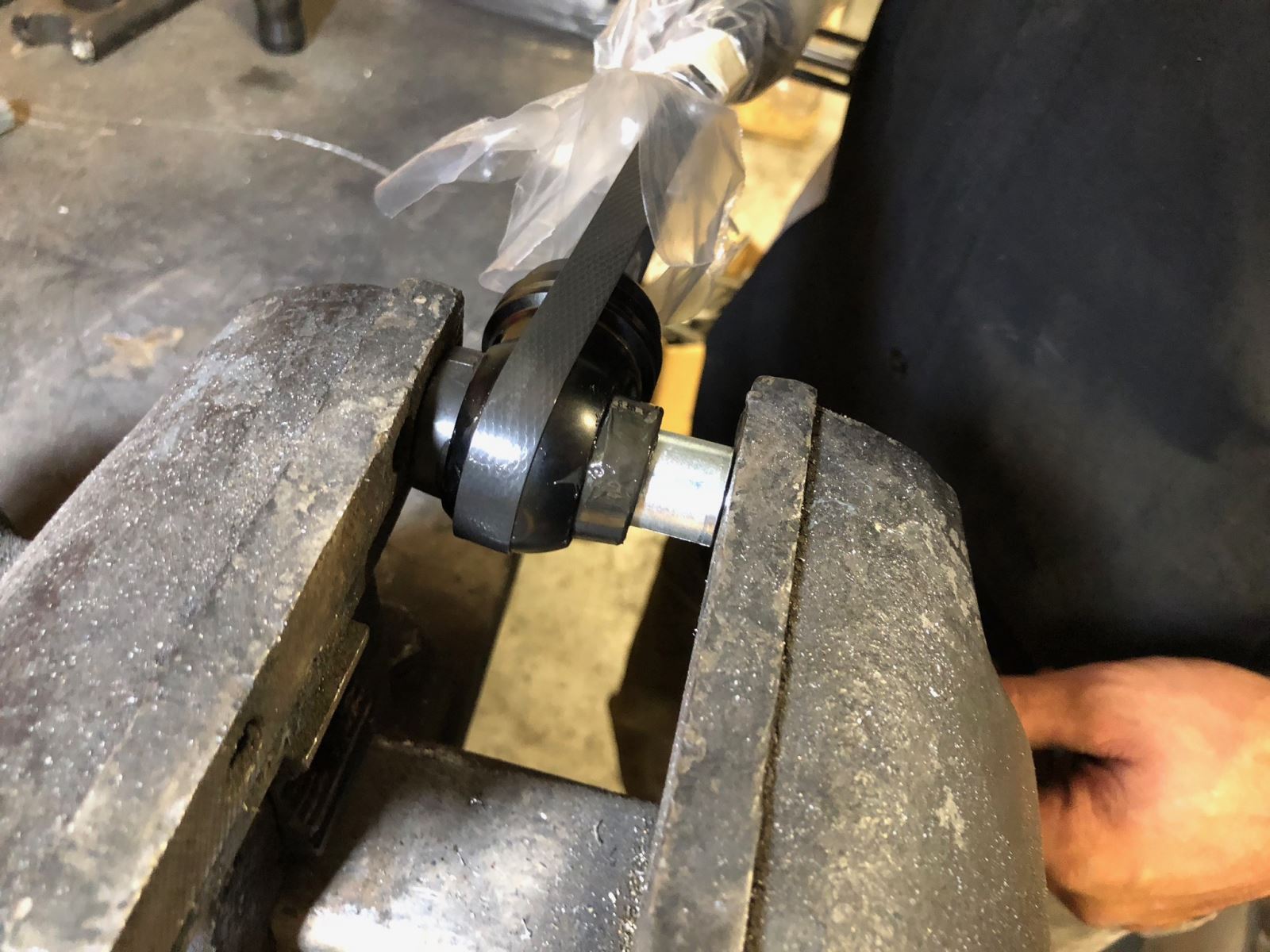

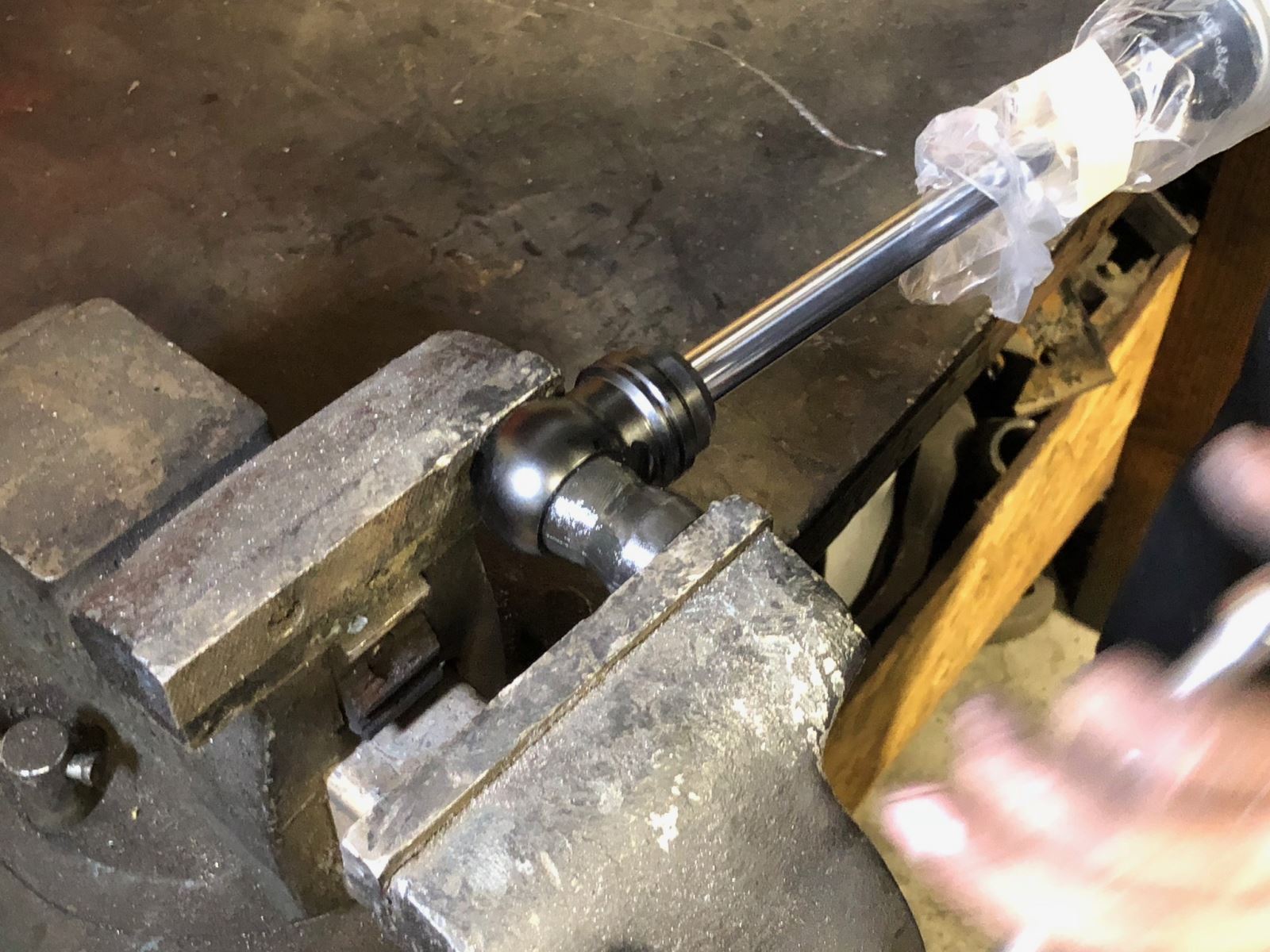

19 Press the bushings into the lower shock ends. Grease the rubber bushings so they slide in easily. Grease and insert the sleeves.

 IMG_0057

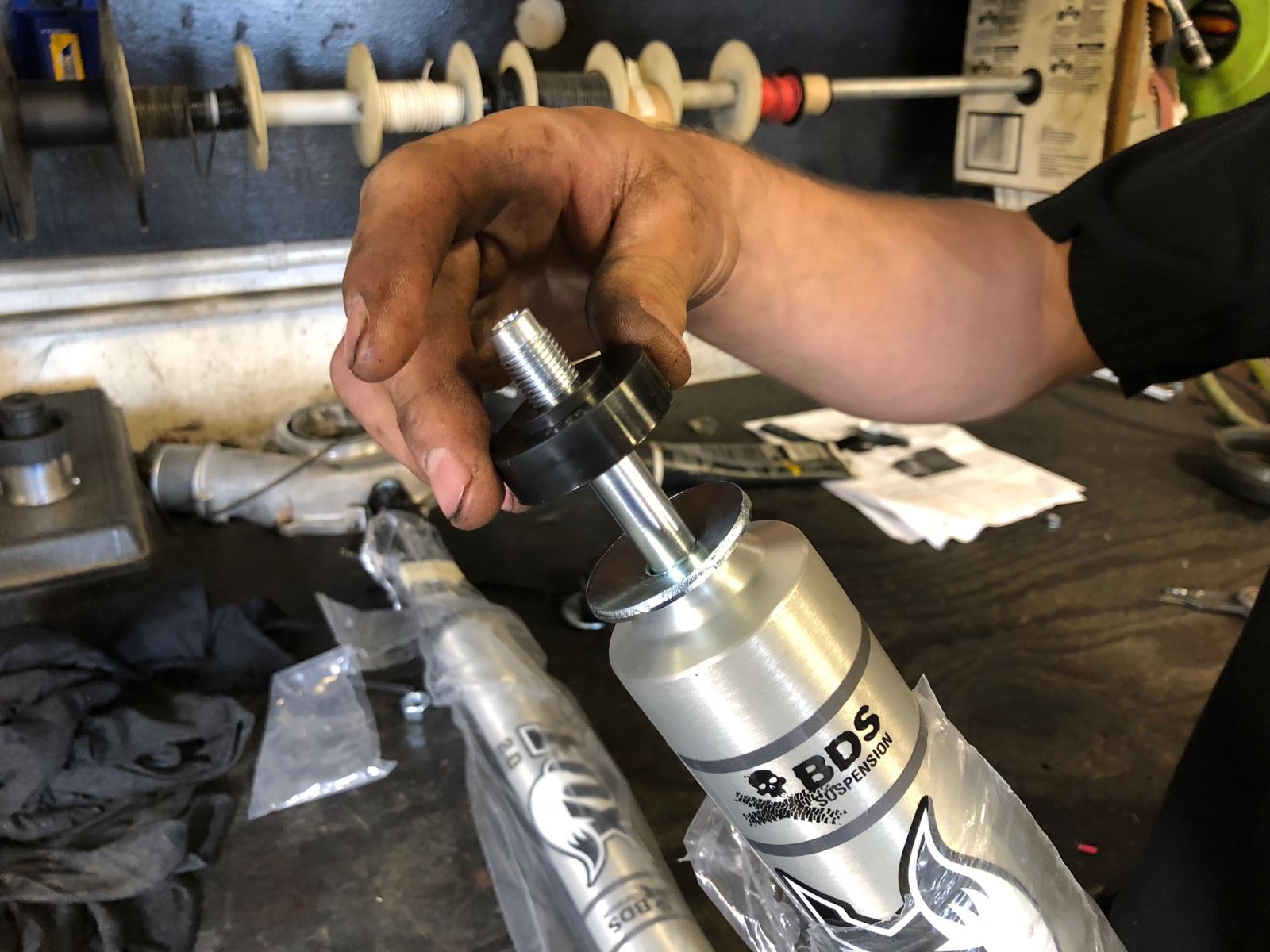

20 Install upper shock bumpers.

 IMG_0059

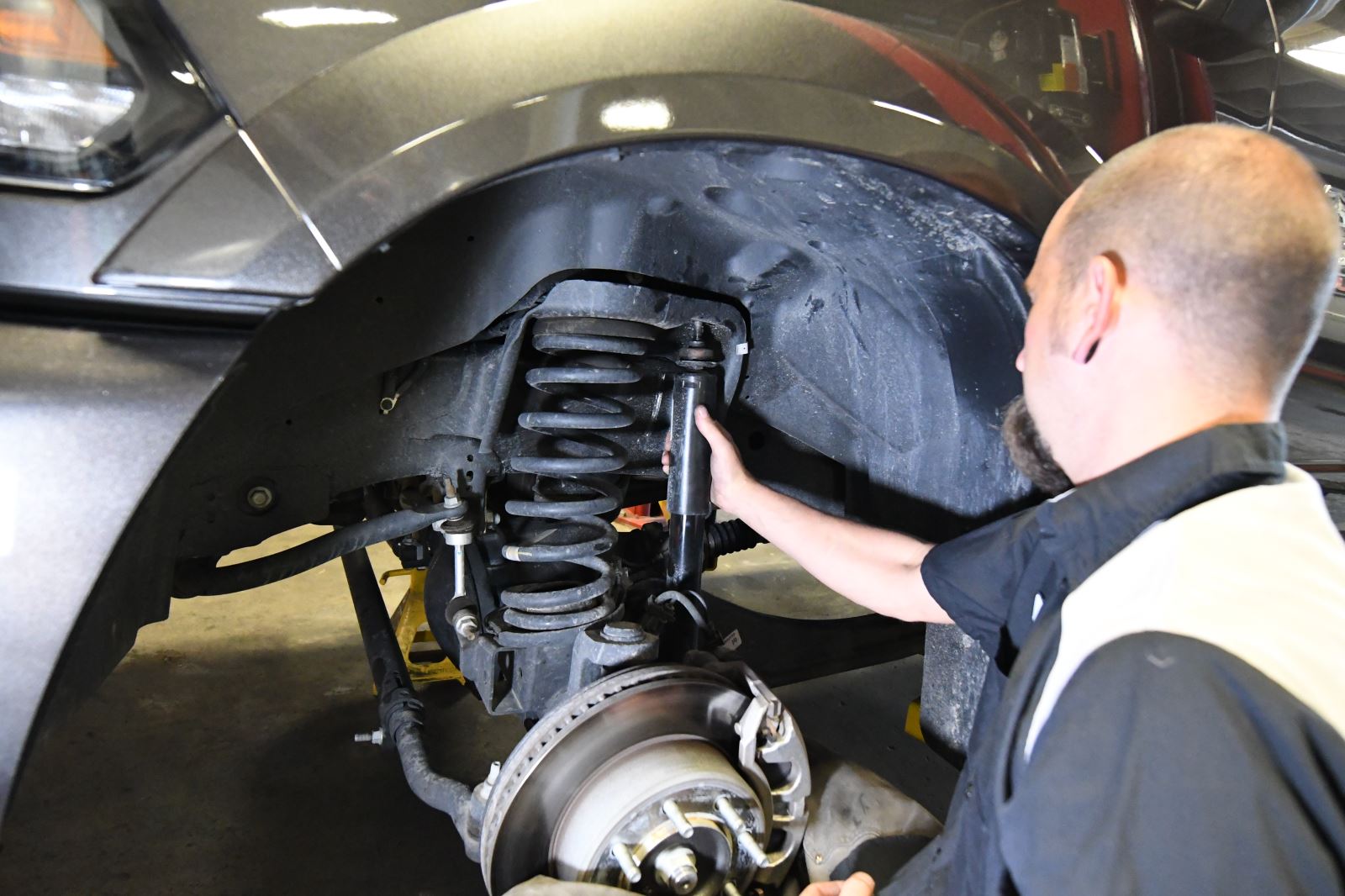

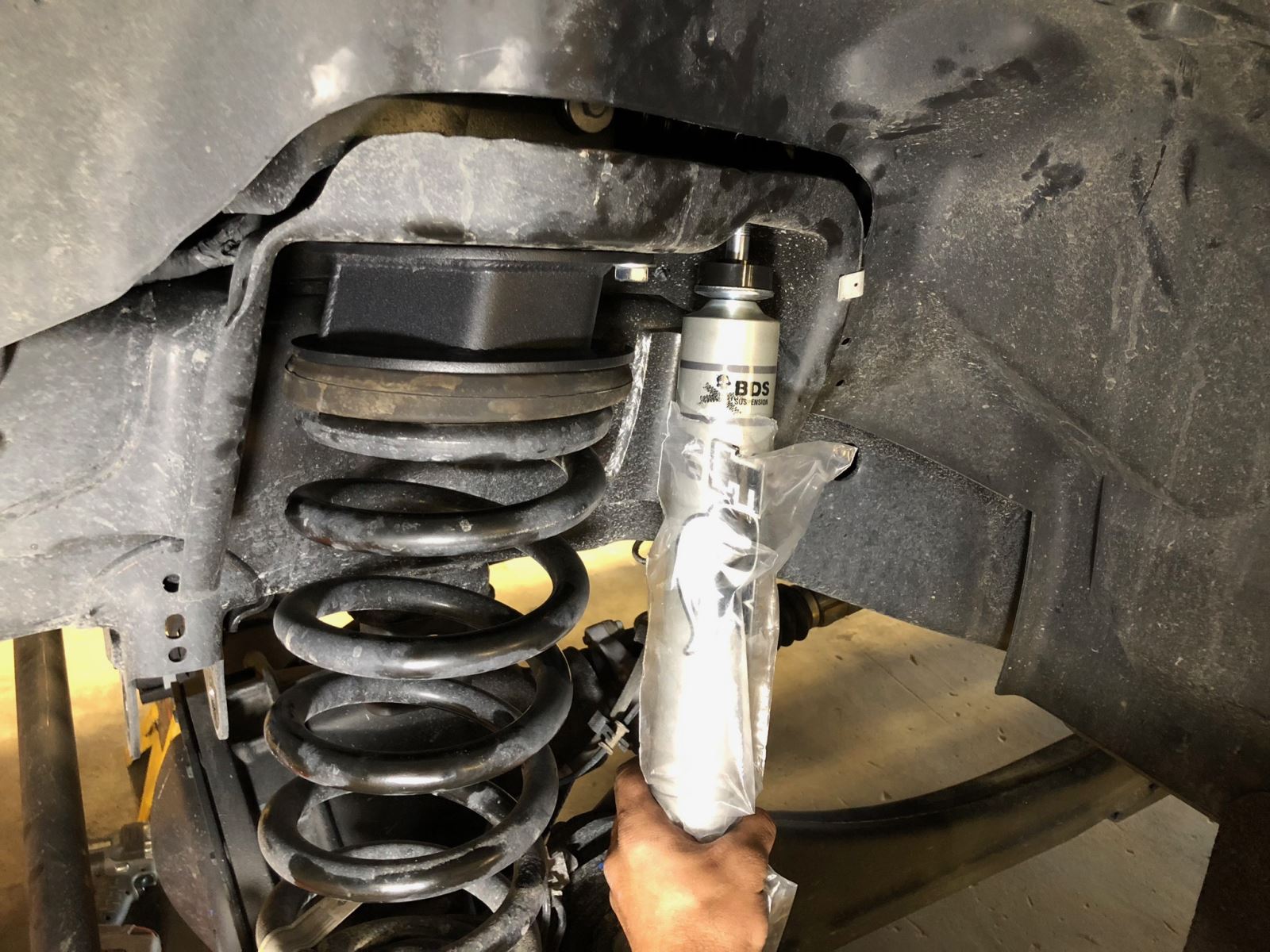

21 Install Fox 2.0 shock absorbers, top first.

 IMG_0061

22 Install lower shock bolts. Leave the plastic on until after the alignment.

 IMG_0063

23 Remove stock steering stabilizer.

 IMG_0065

24 Remove the steering stabilizer mounting bracket from axle housing.

 IMG_0062

25 Prep steering stabilizer hardware.

 IMG_0068

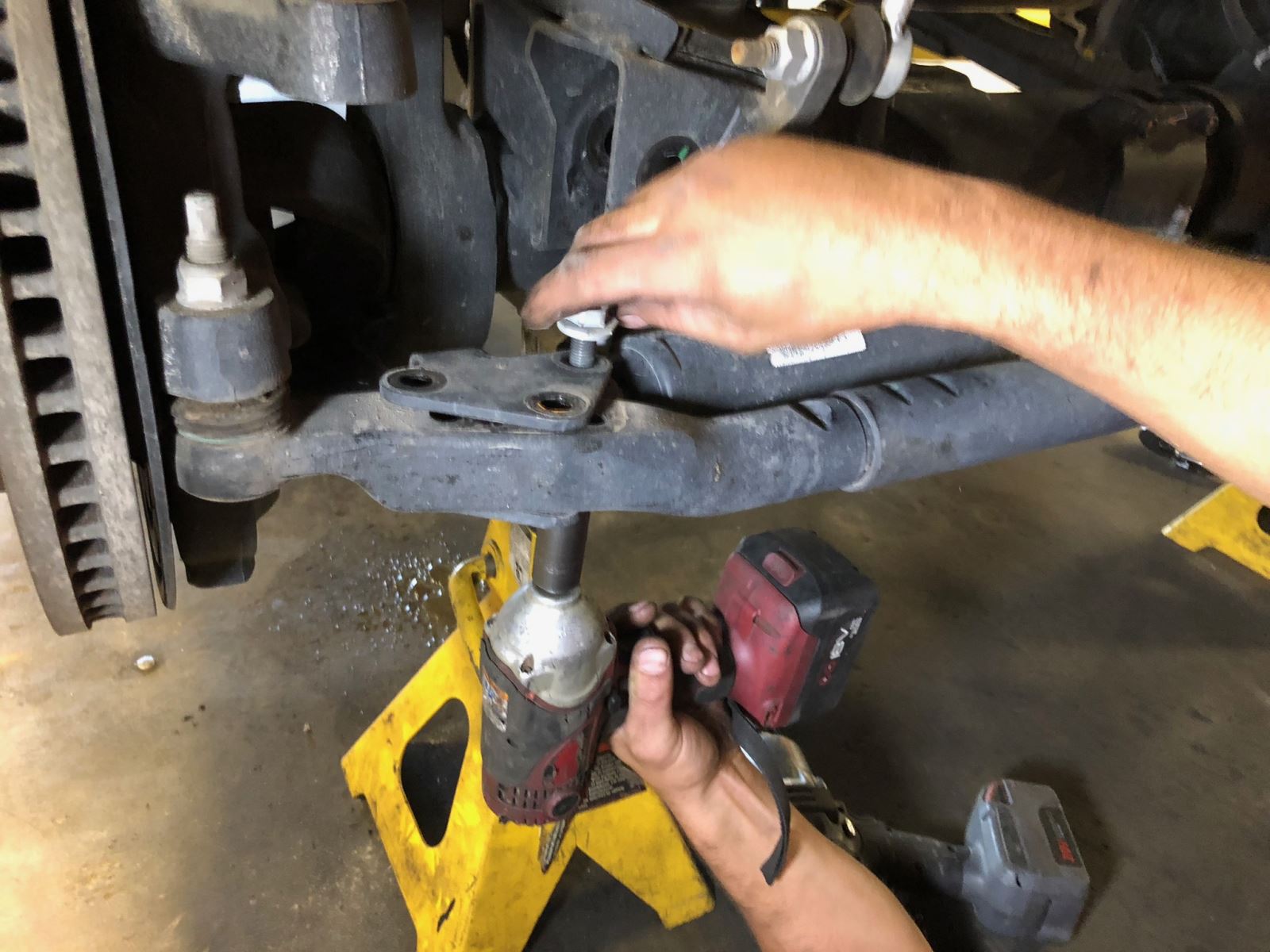

26 Install passenger side steering stabilizer bracket.

 IMG_0070

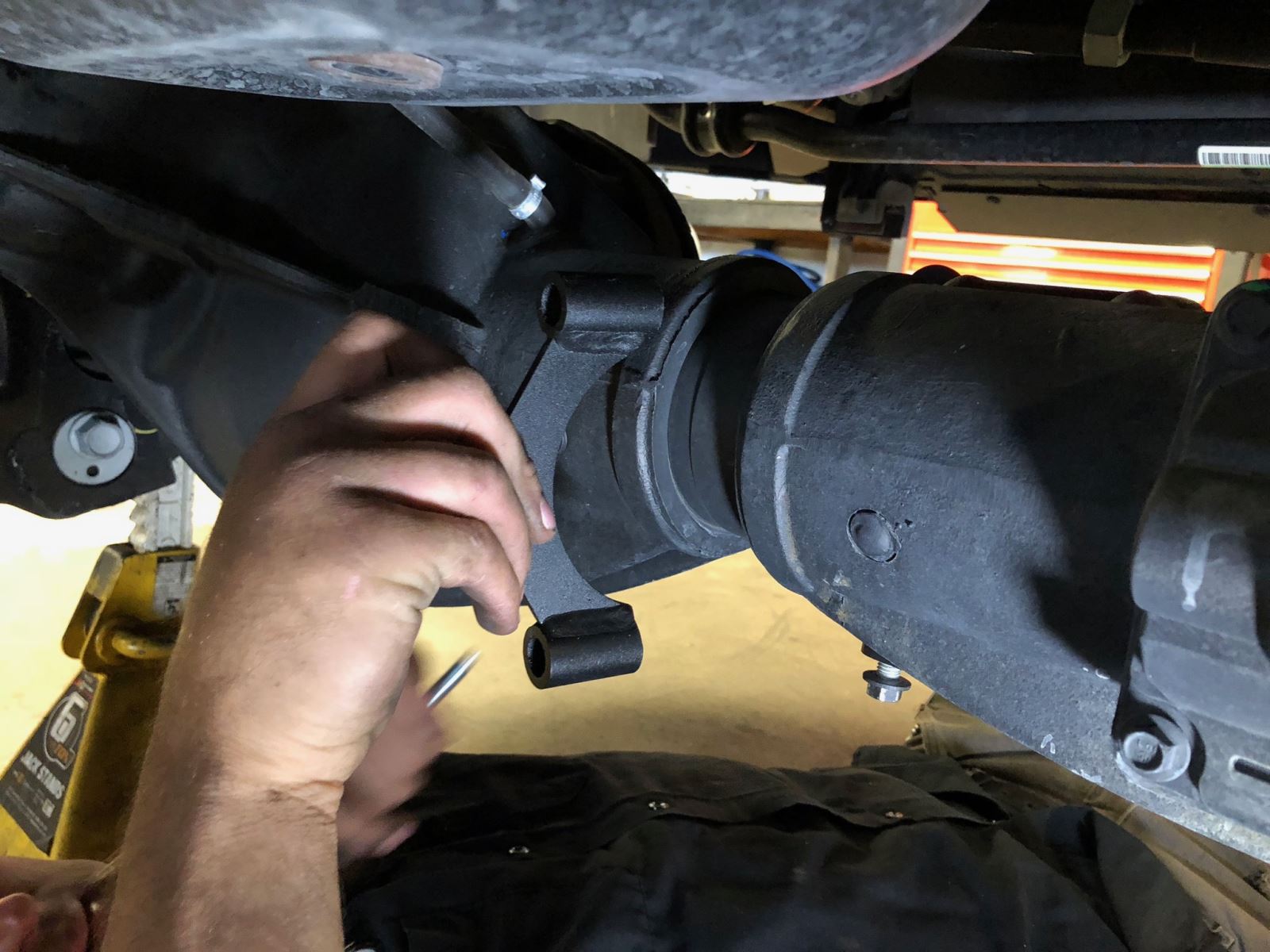

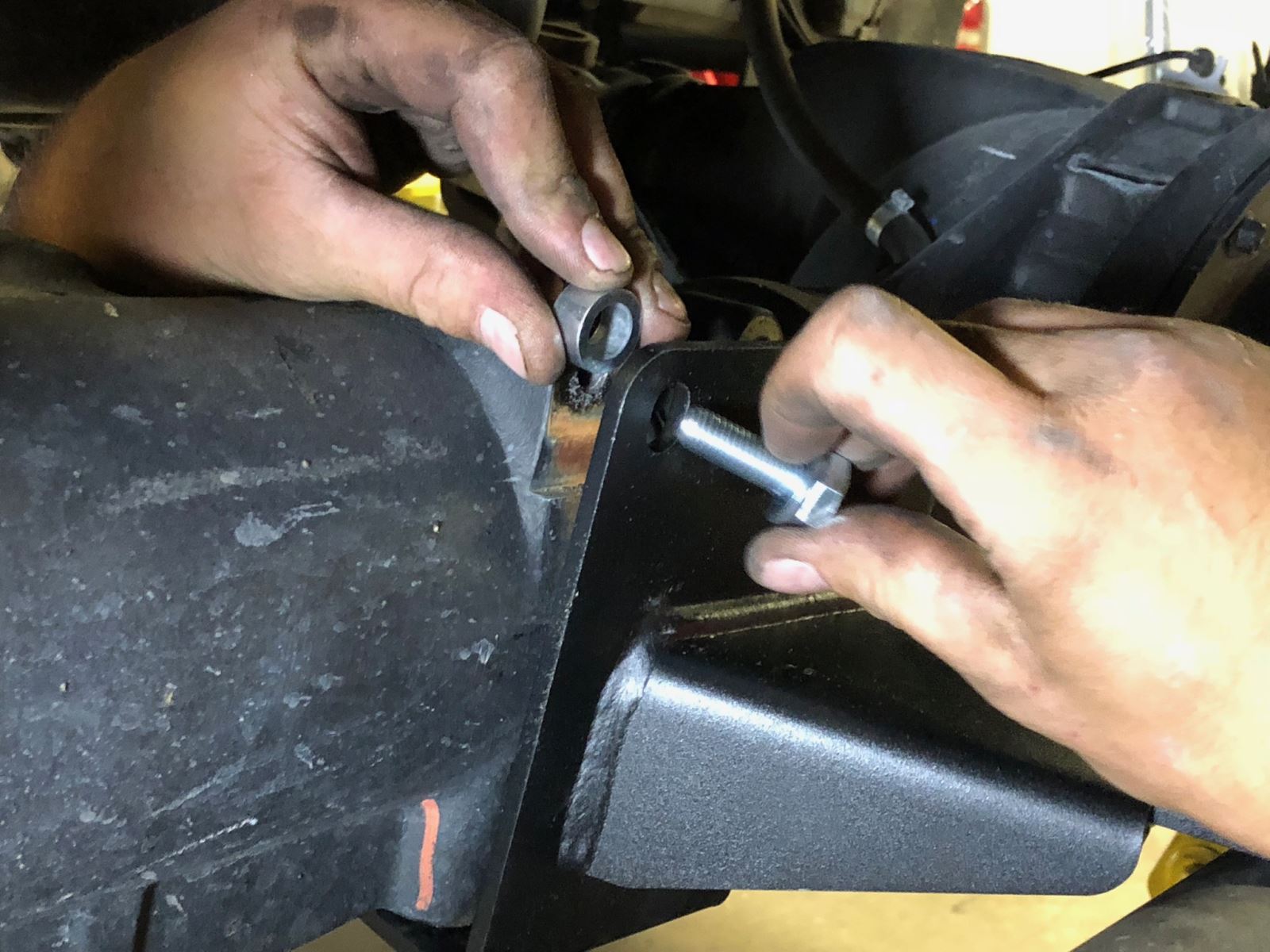

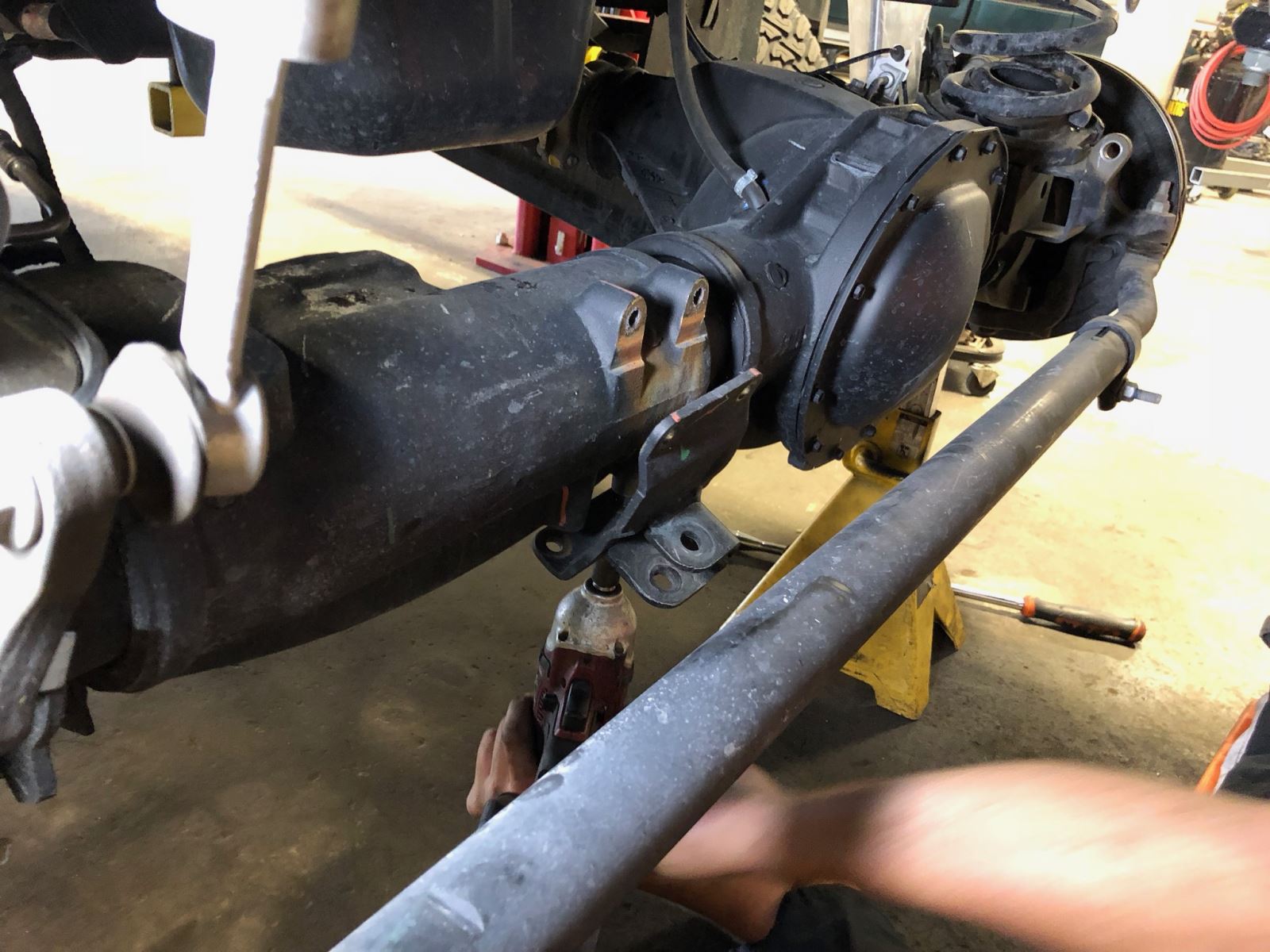

27 Install steering stabilizer axle housing bracket with spacers between axle and bracket on upper mounts. Leave hardware loose for now.

 IMG_0071

28 Install axle housing rear support.

 IMG_0073

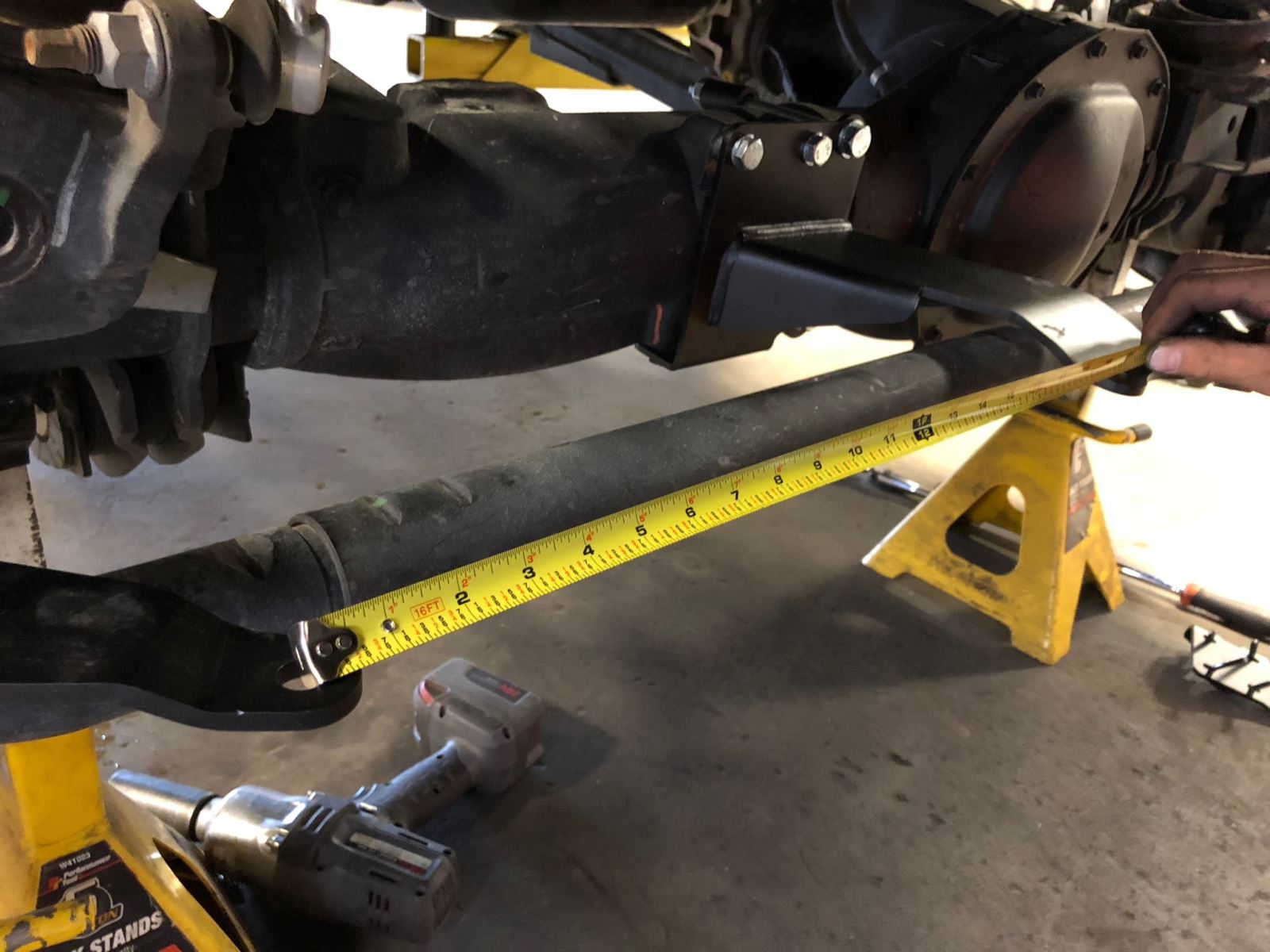

29 Measure distance between the two brackets and determine where to mount the driver’s side bracket. Needs to be even on both sides. Ours was 19-7/8 inches.

 IMG_0074

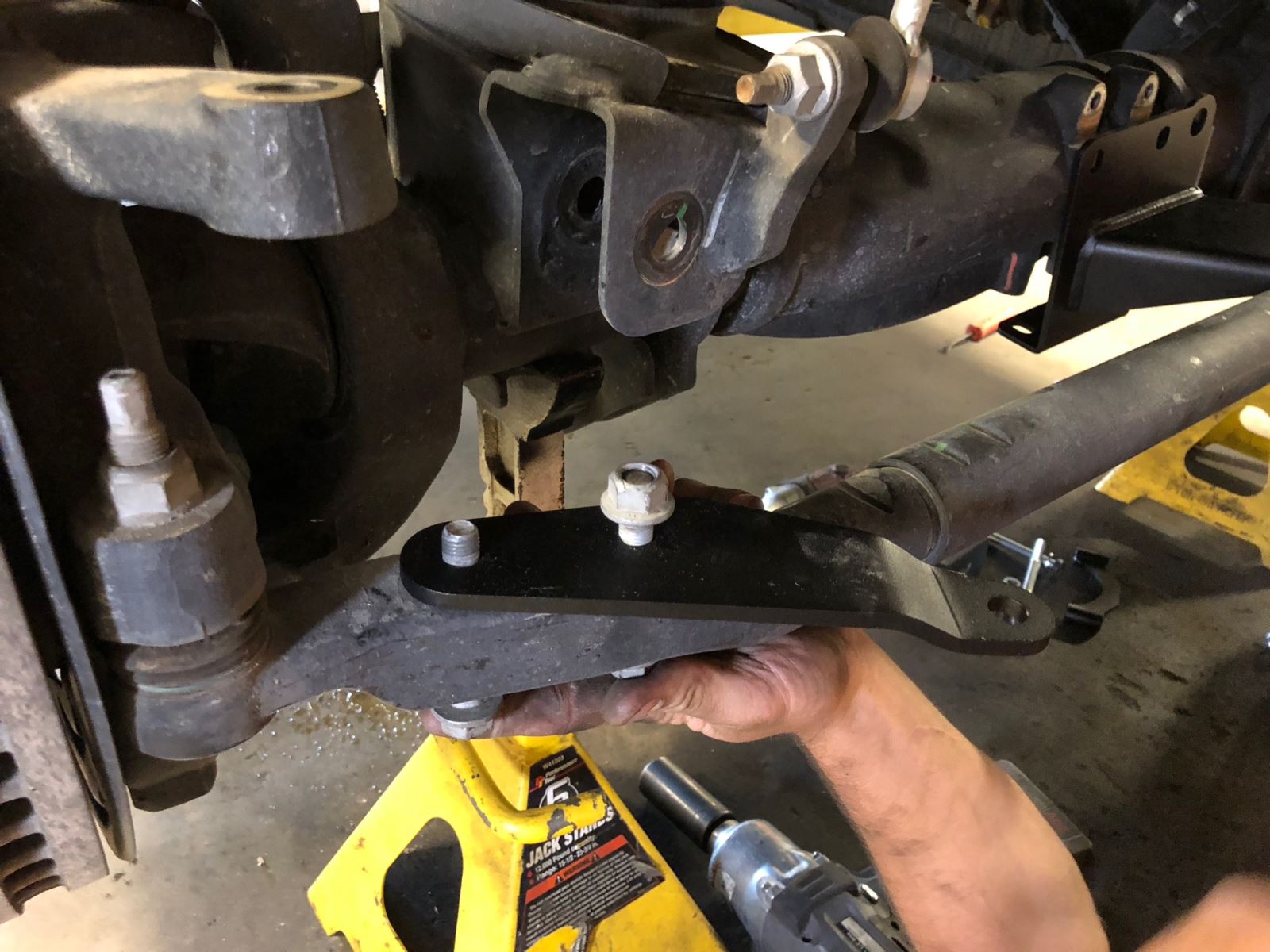

30 Install drivers side steering stabilizer bracket and U-bolts. Torque the bolts to 20 ft-lbs

 IMG_0079

31 Rotate the tie rod clamp 180 degrees so the clamp bolt is on the top side of the tie rod.

 IMG_0075

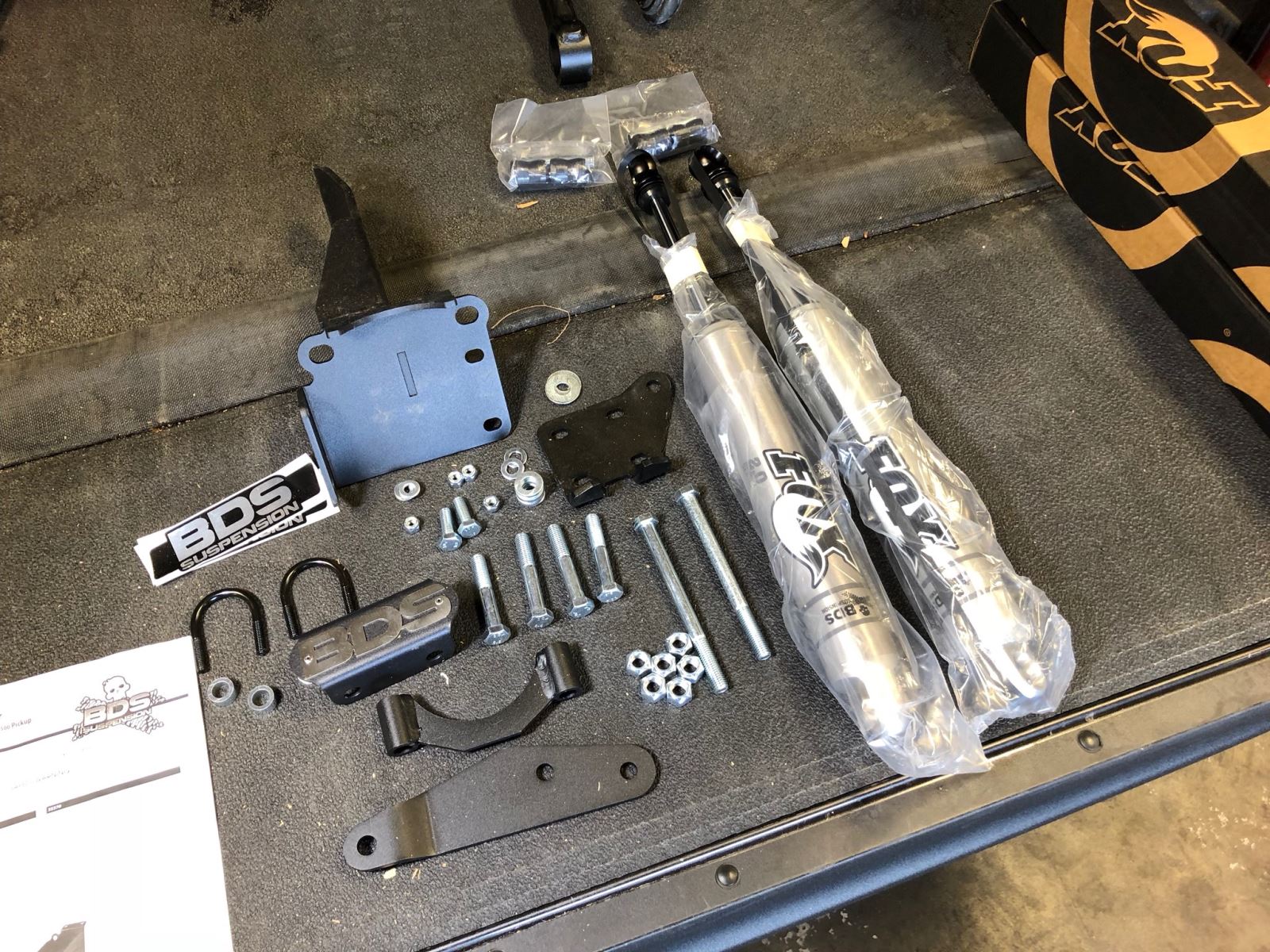

32 Assemble BDS steering stabilizer shock absorbers, bushings, sleeves. Leave the plastic wrap on throughout the installation.

 IMG_0076

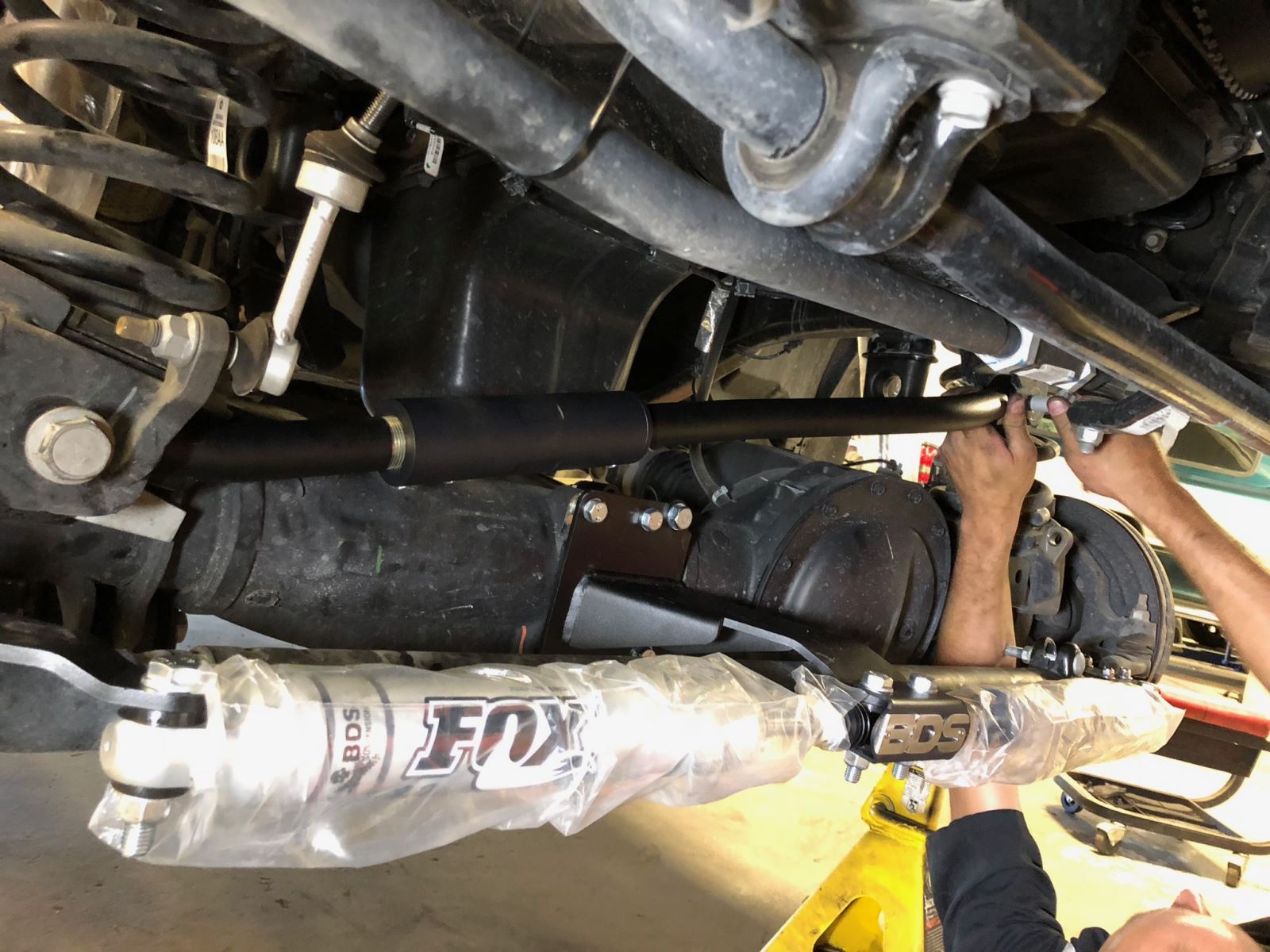

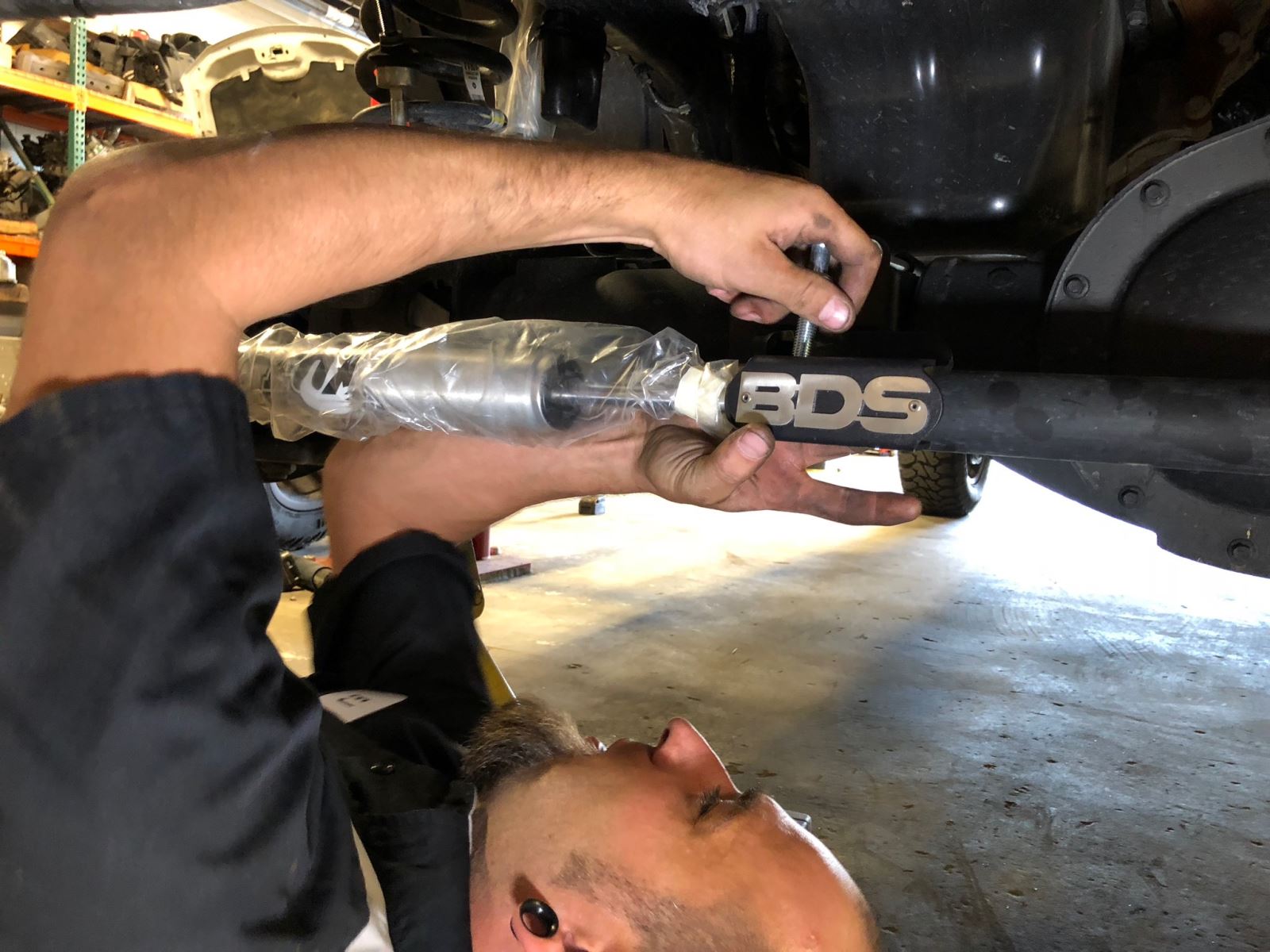

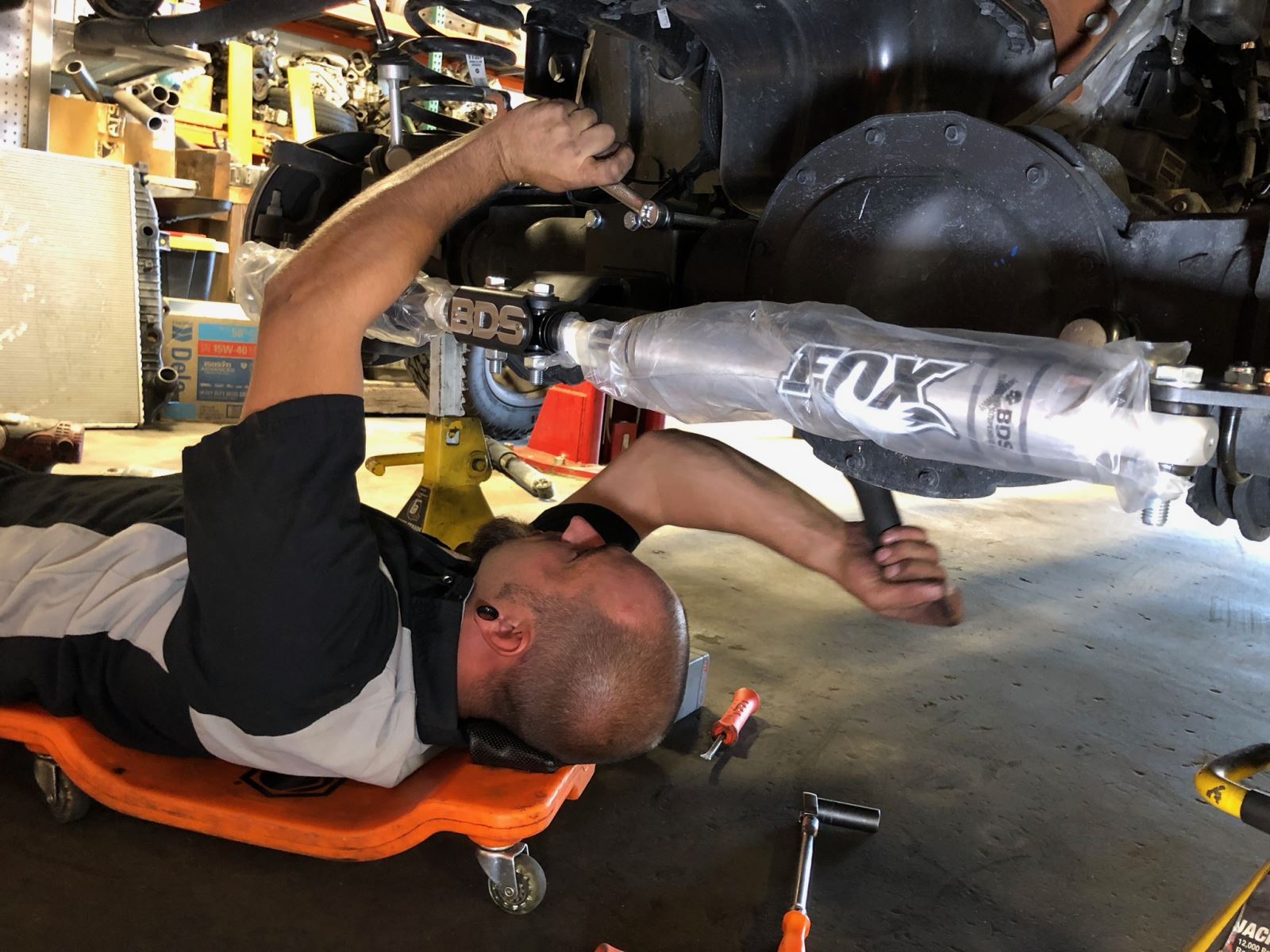

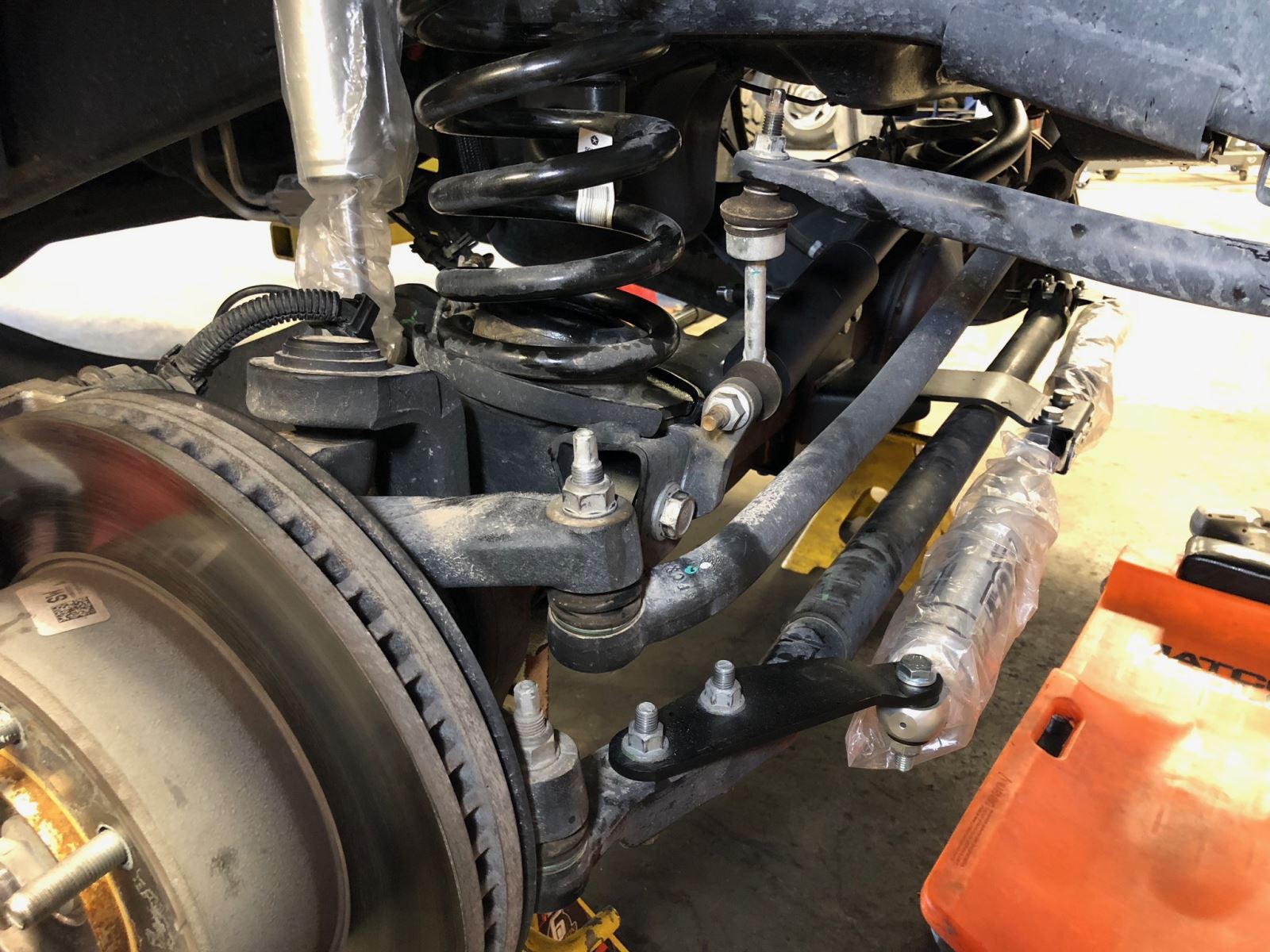

33 Install steering stabilizer shock absorbers. You’ll need to shorten or lengthen the shocks to get them to line up. Install the center coupling bracket as well.

 IMG_0083

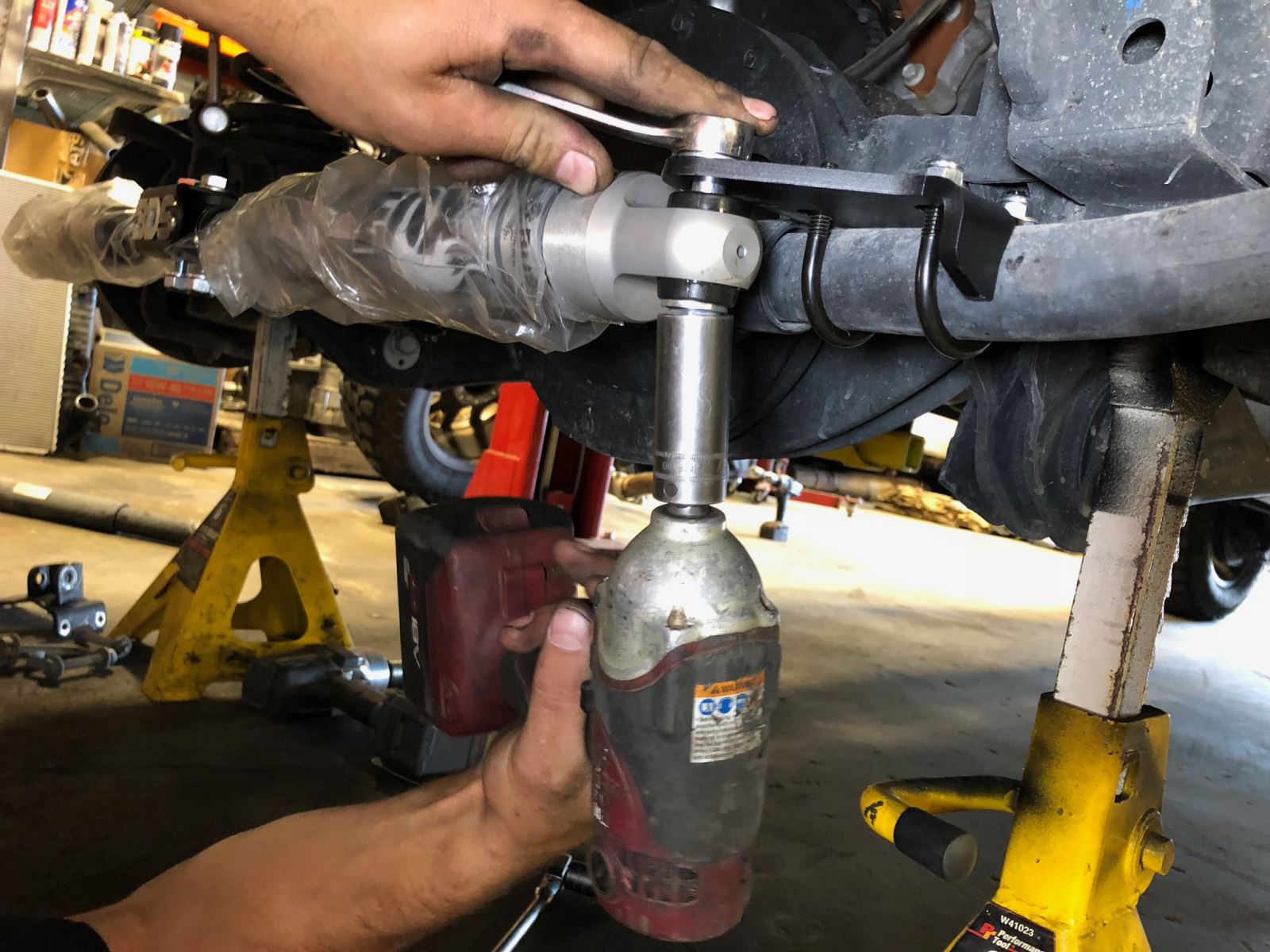

34 Tighten steering stabilizer shock absorber bolts.

 IMG_0084

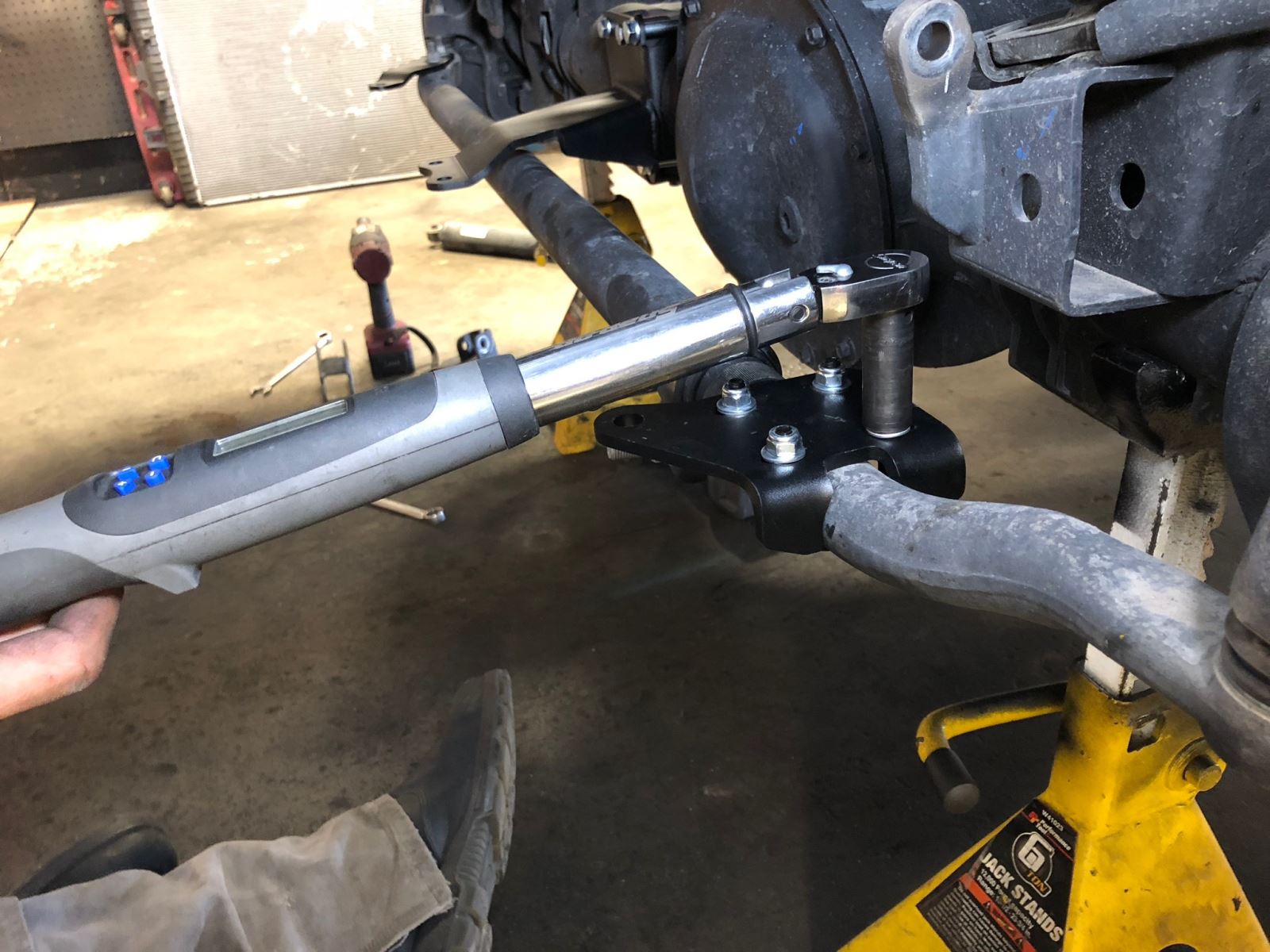

35 Torque all steering stabilizer hardware to specs.

 IMG_0085

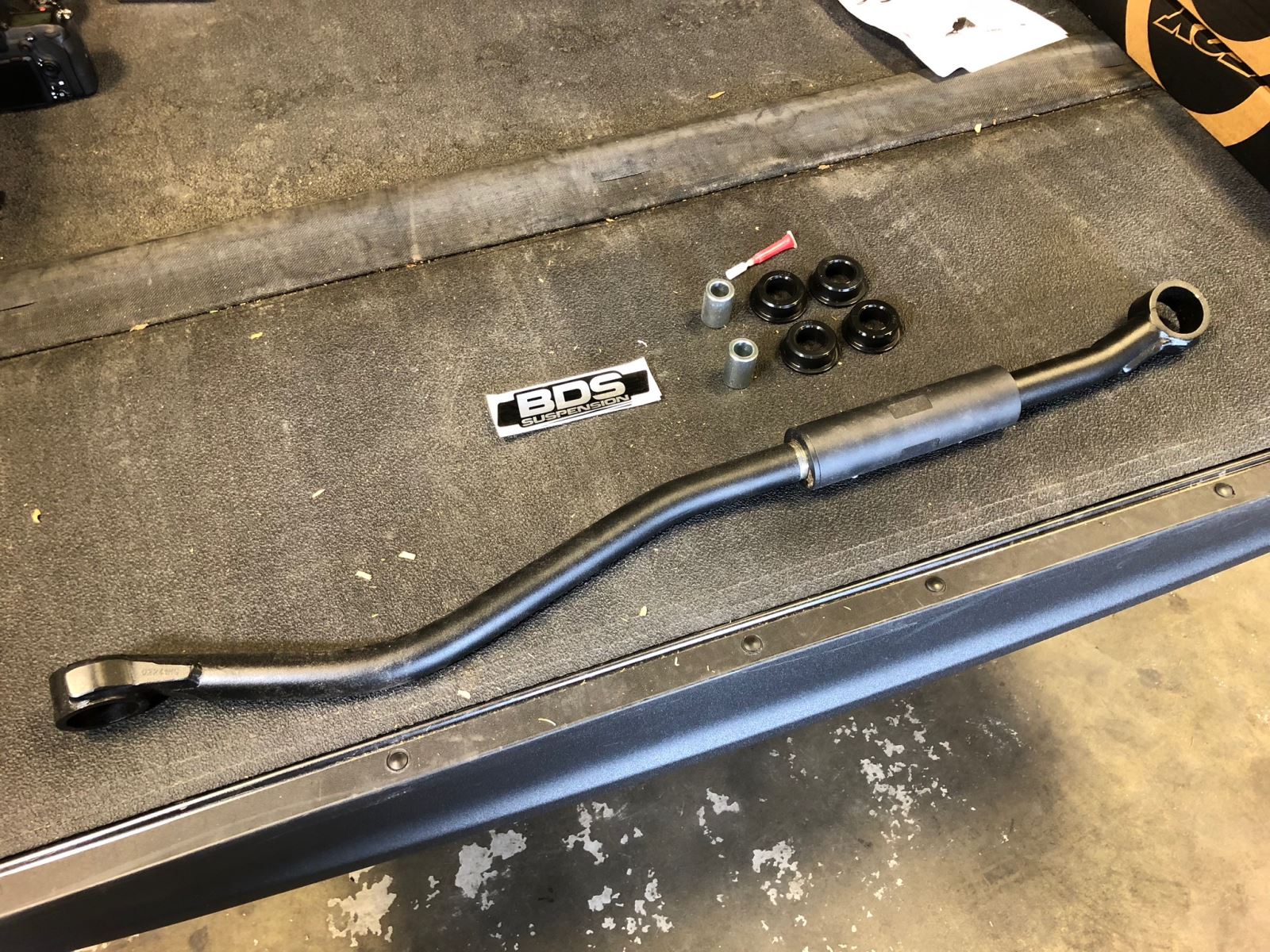

36 Prep Adjustable Track Bar for assembly and installation.

 IMG_0086

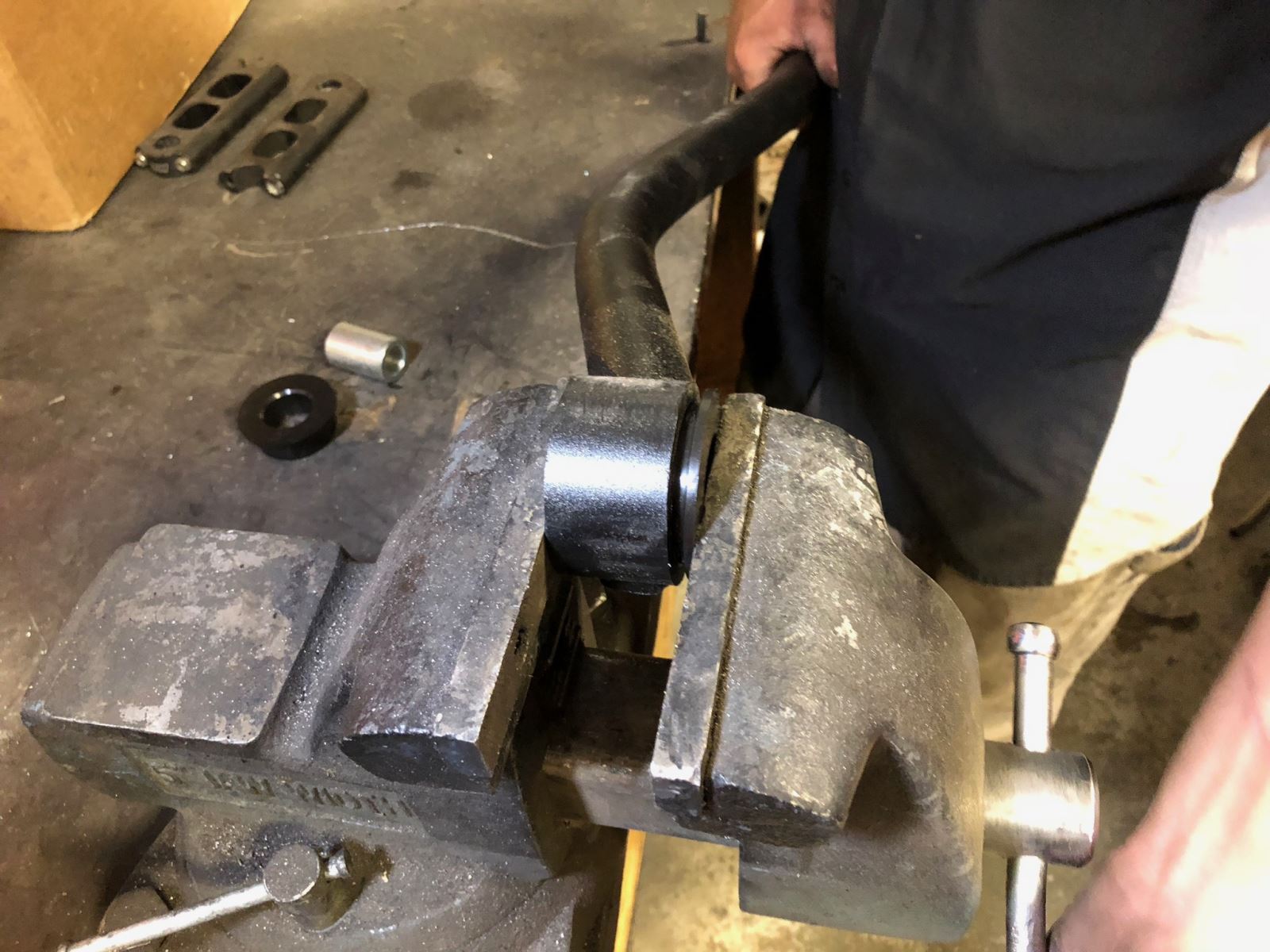

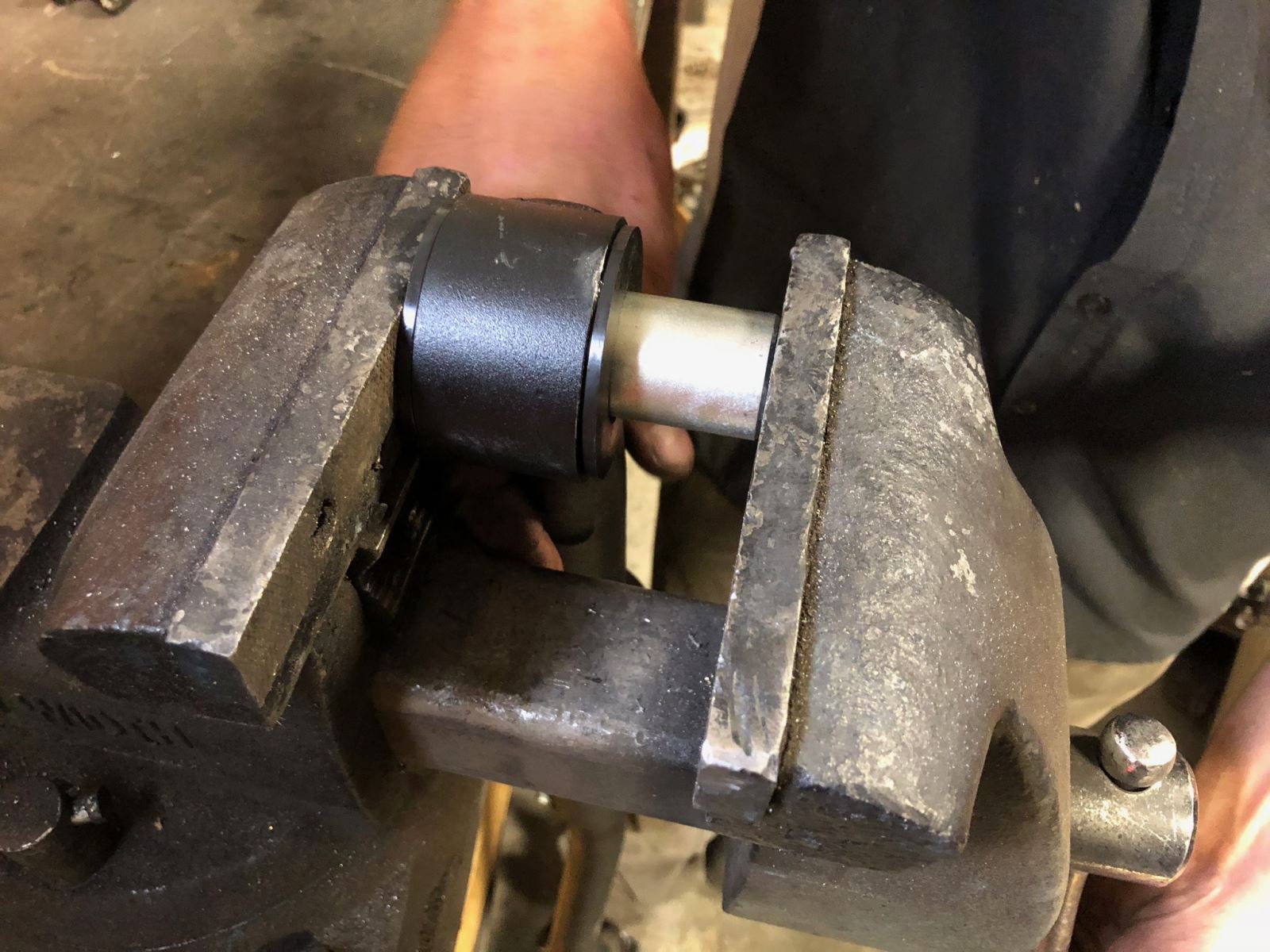

37 Press polyurethane collars into track bar ends.

 IMG_0087

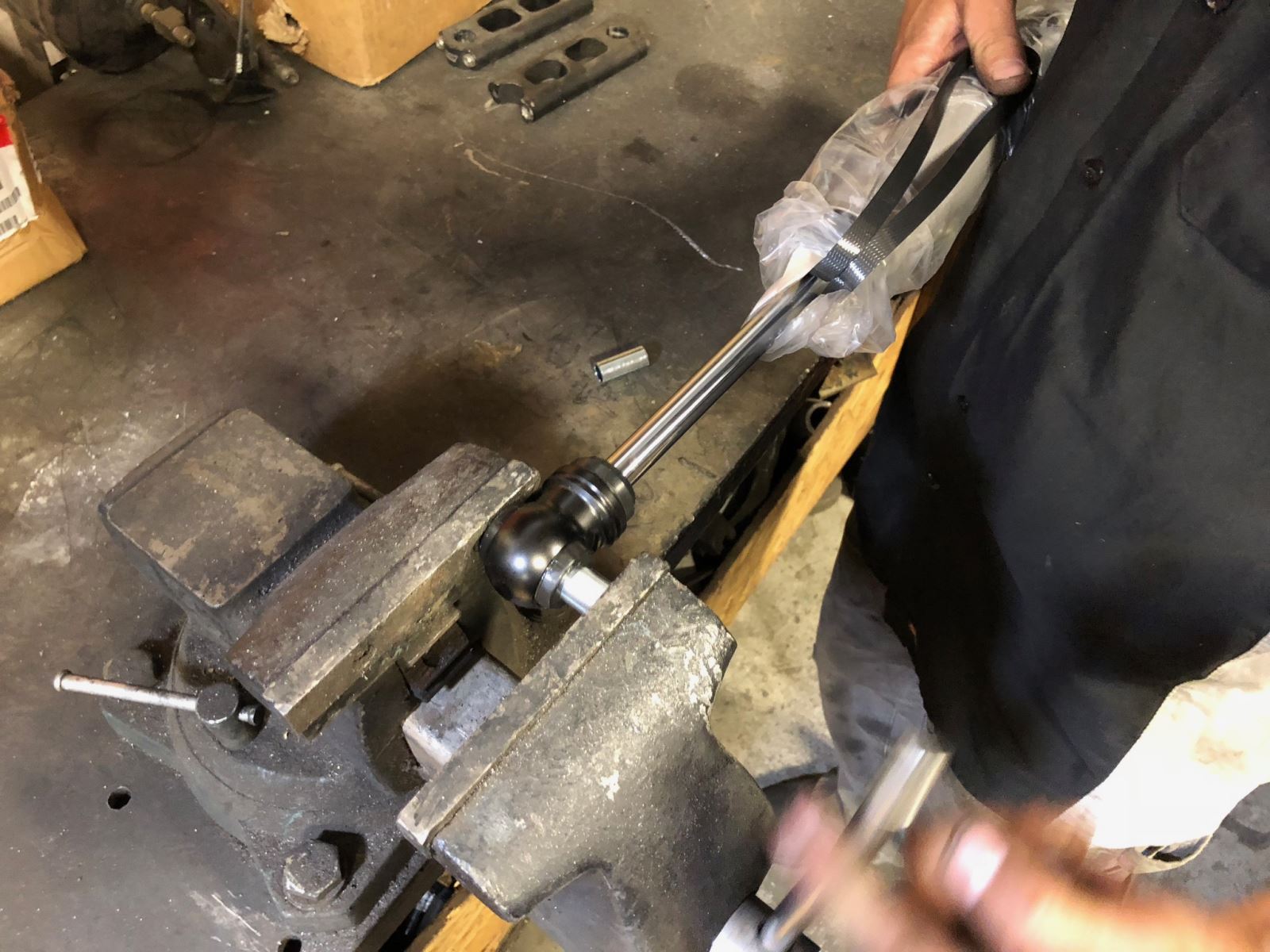

38 Press steel sleeves into poly collars.

 IMG_0088

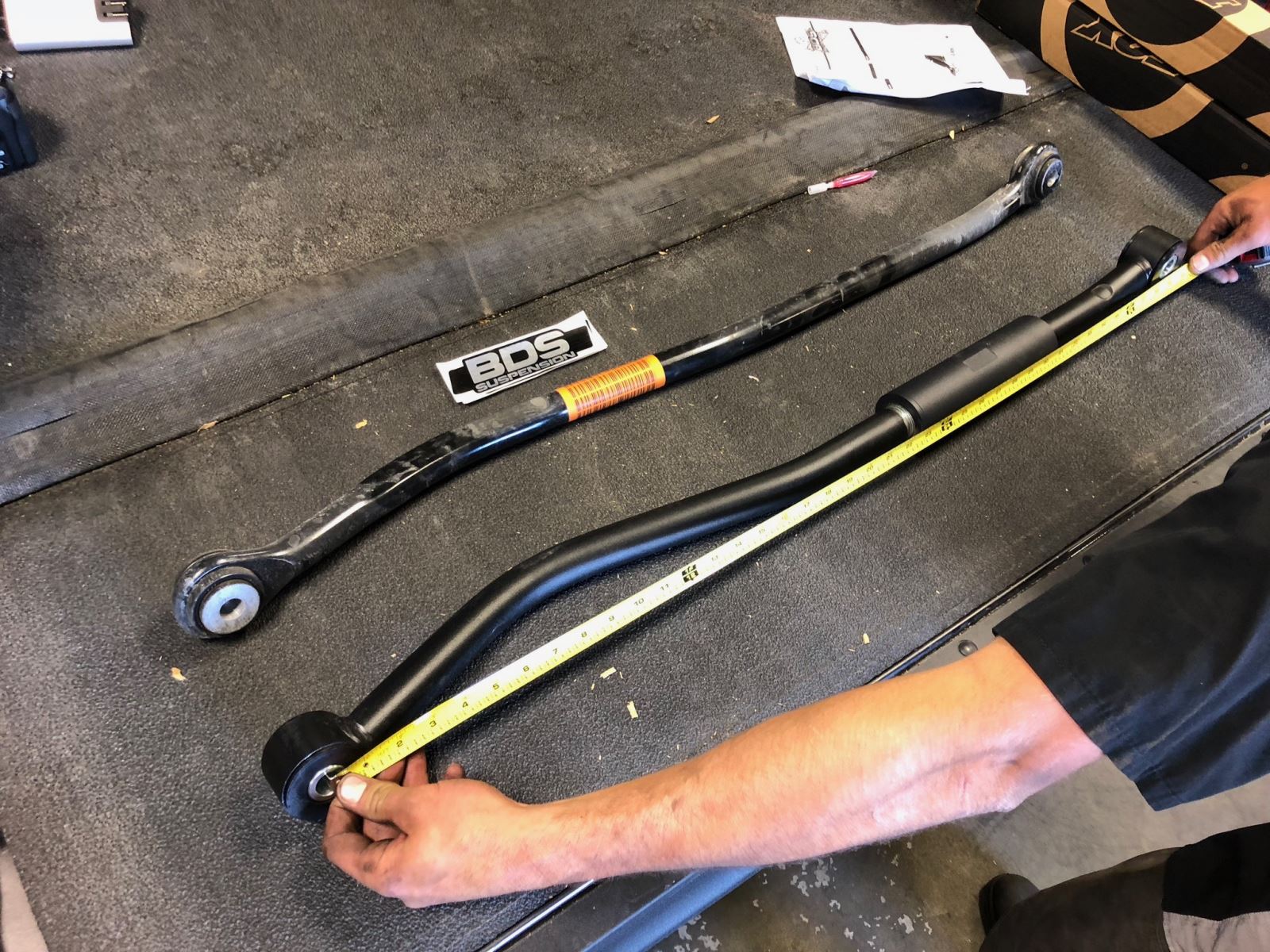

39 Measure eye-to-eye length of stock track bar. Adjust BDS track bar to same length.

 IMG_0090

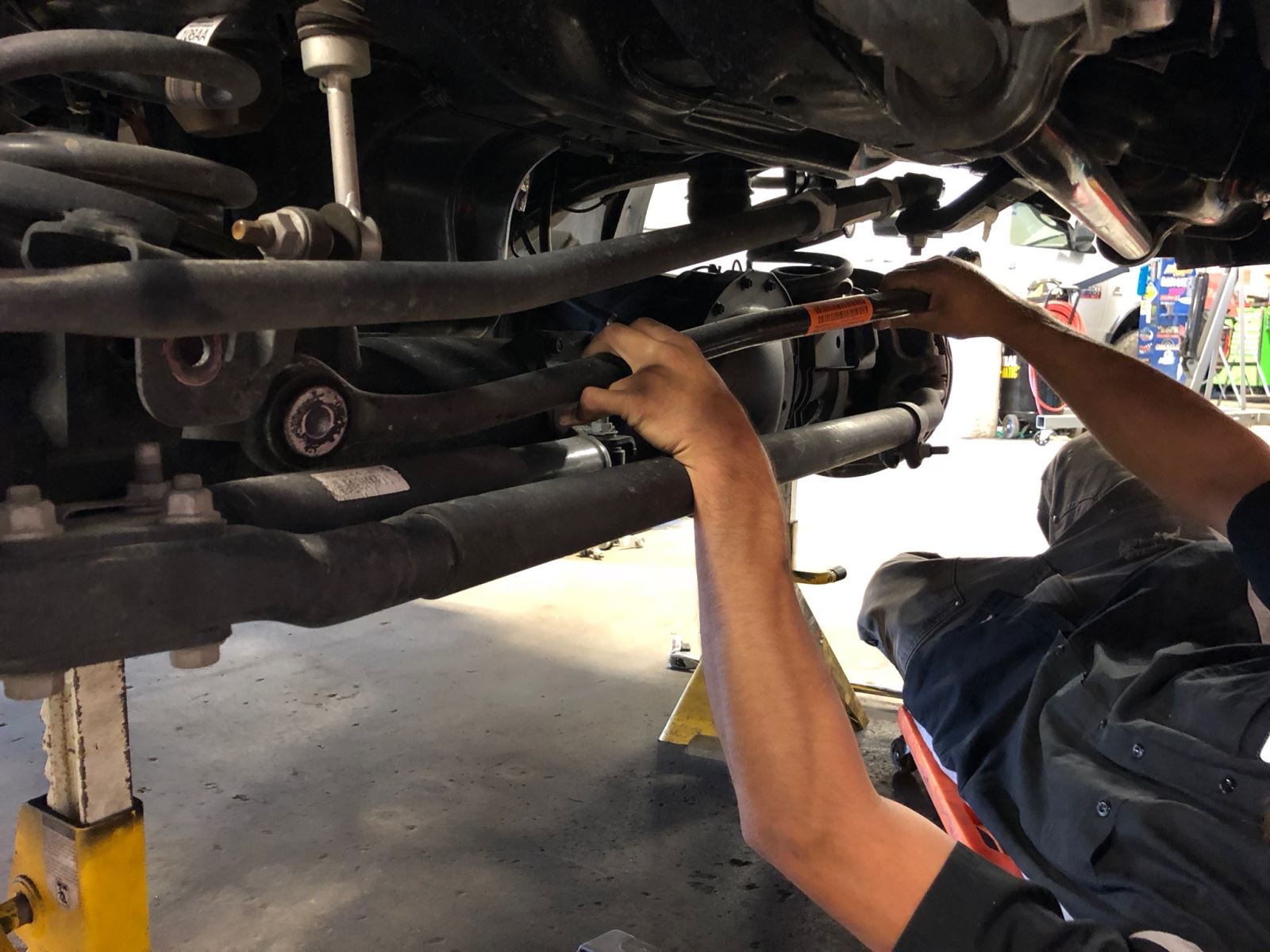

40 Install Adjustable Track Bar. Tighten bolts.

 IMG_0092

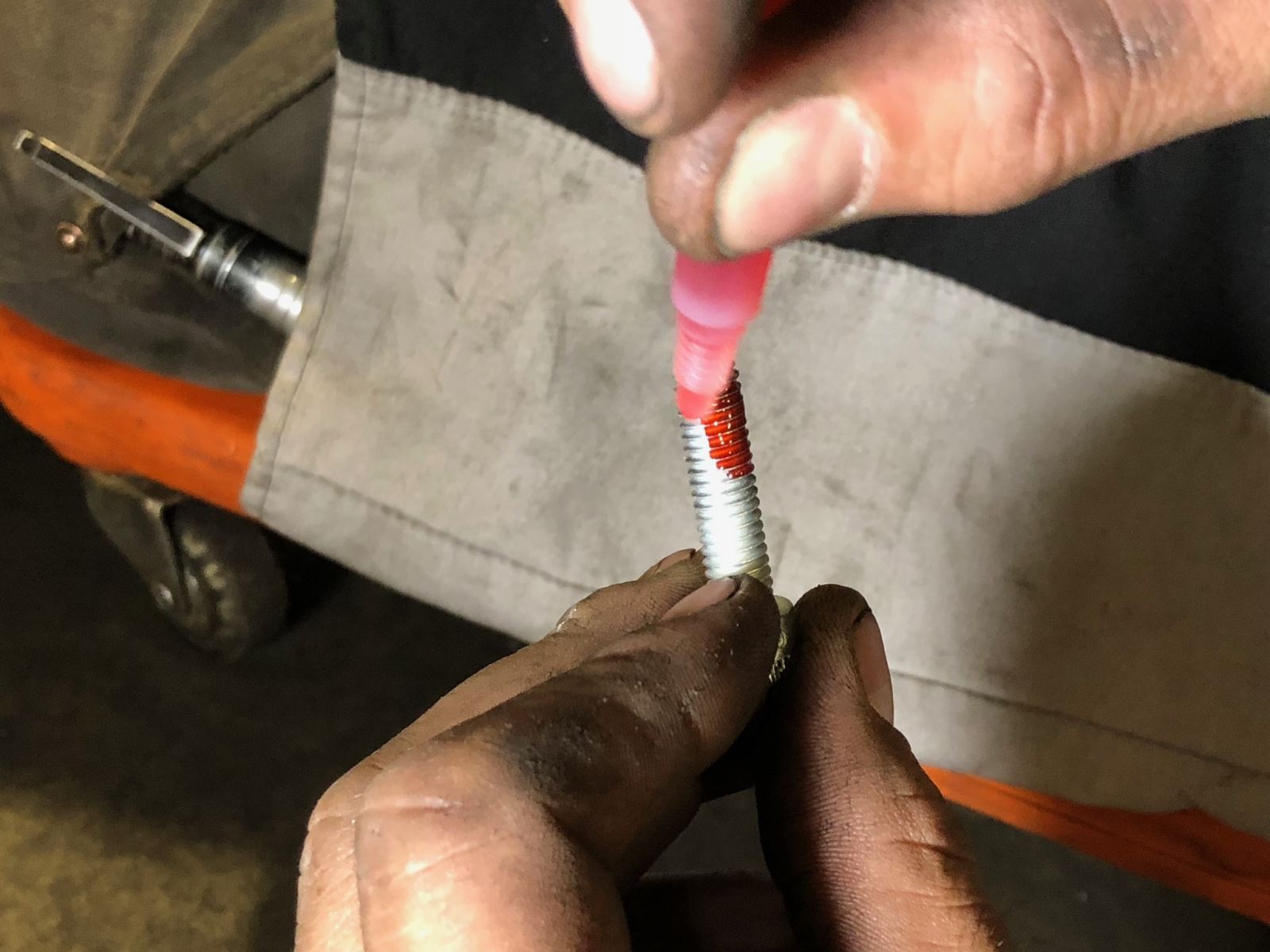

41 Remove track bar adjuster set screws and apply the supplied red thread locker and reinstall.

 IMG_0100

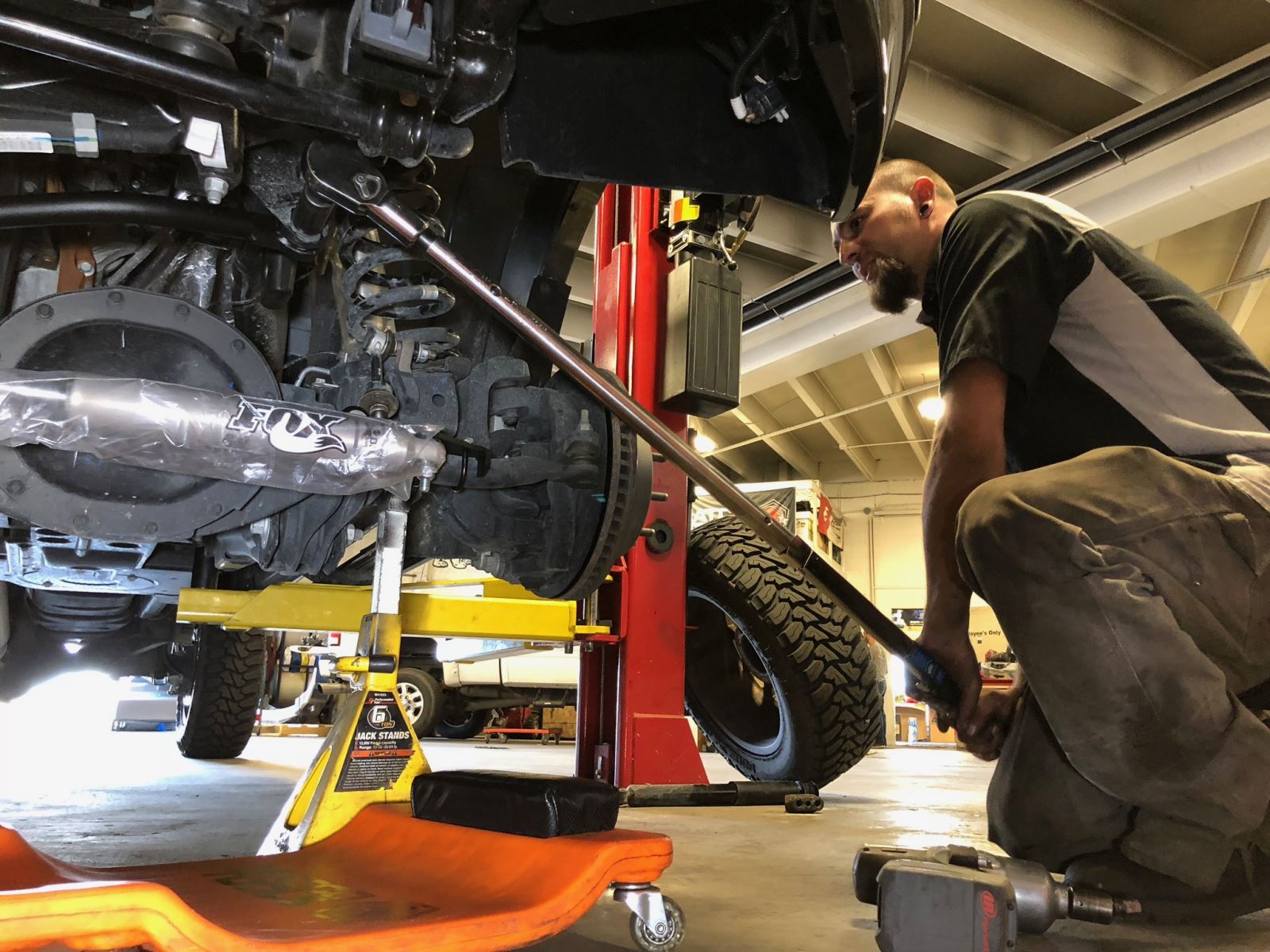

42 Torque Track Bar bolts. 324 ft-lbs on driver’s side, 285 ft-lbs passenger side.

 IMG_0101

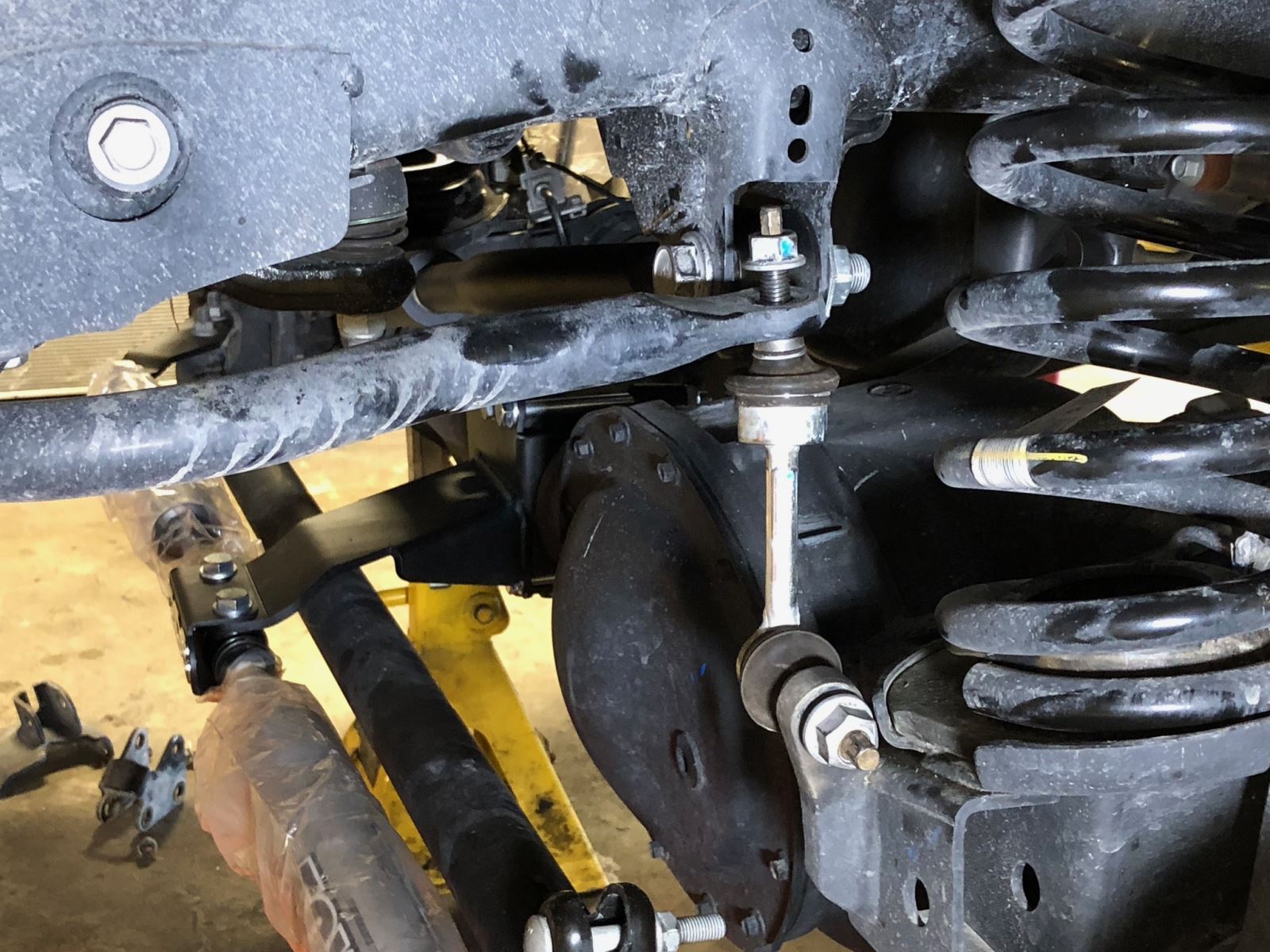

43 Reattach sway bar.

 IMG_0102

44 Reinstall drag link.

 IMG_0105

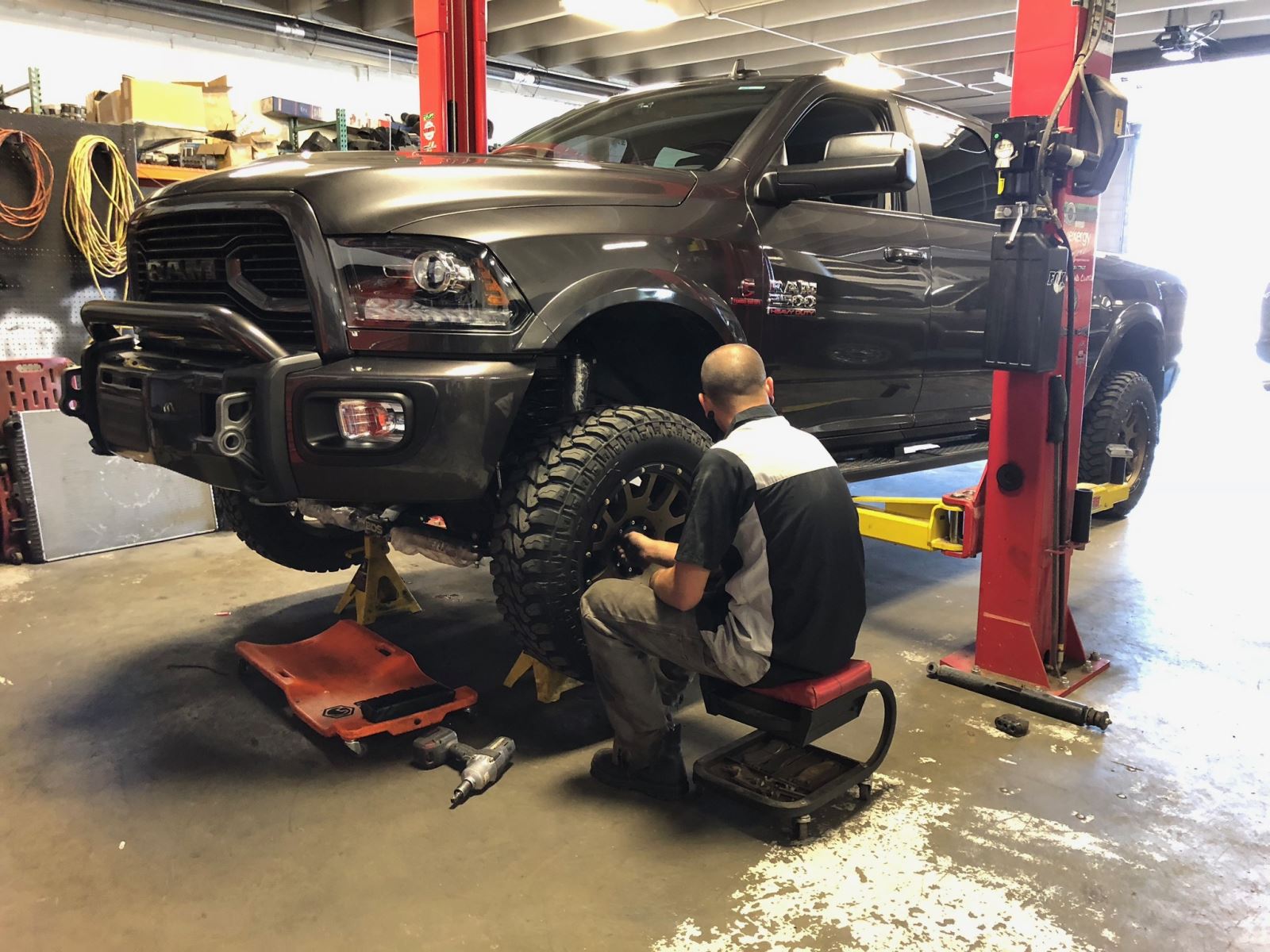

45 Reinstall front wheels. Lower front end.

 IMG_0106

46 Raise rear end. Remove rear wheels.

 IMG_0109

47 Remove the factory ride height sensor linkage.

 IMG_0110

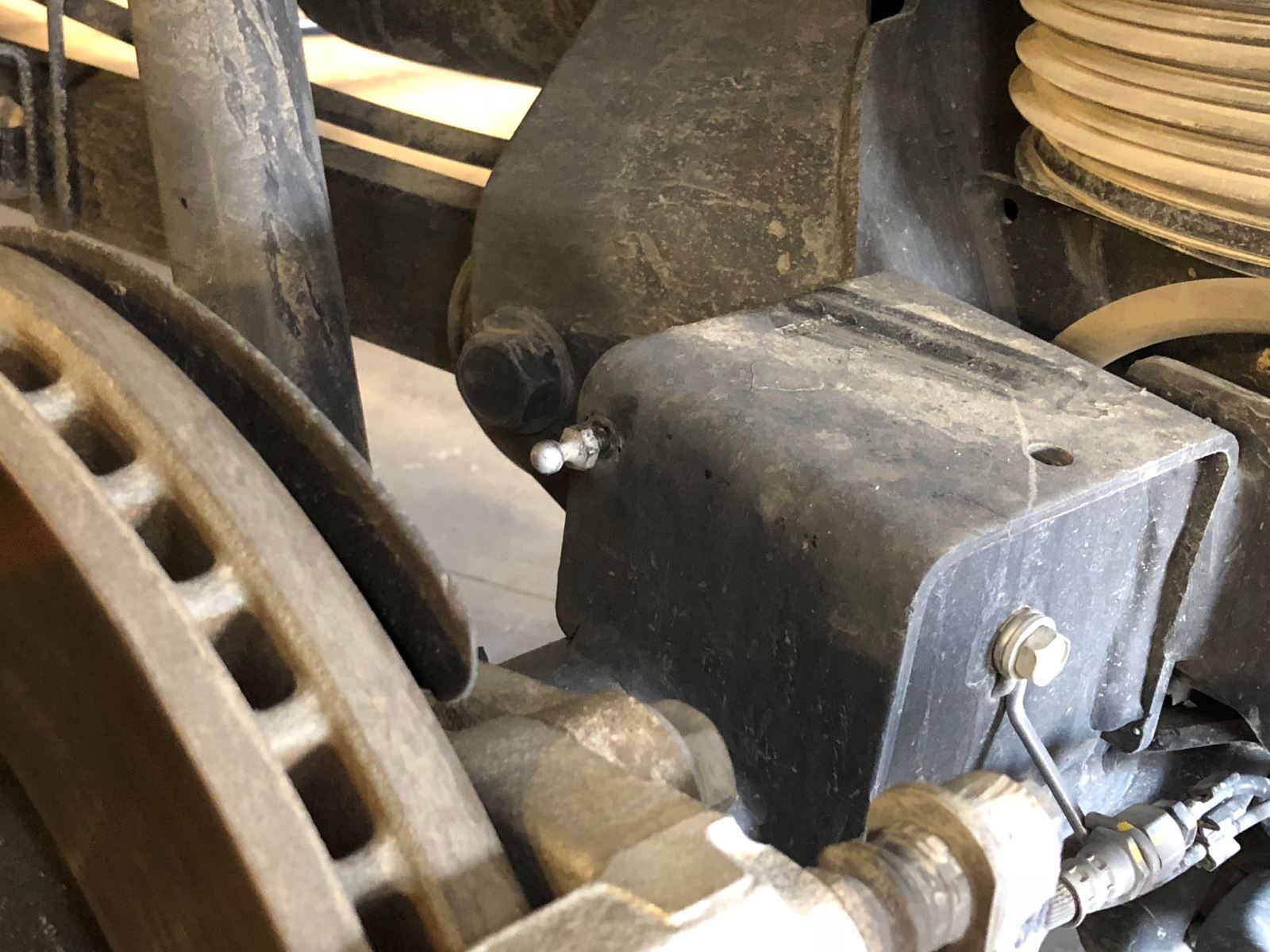

48 Remove linkage ball from axle base.

 IMG_0111

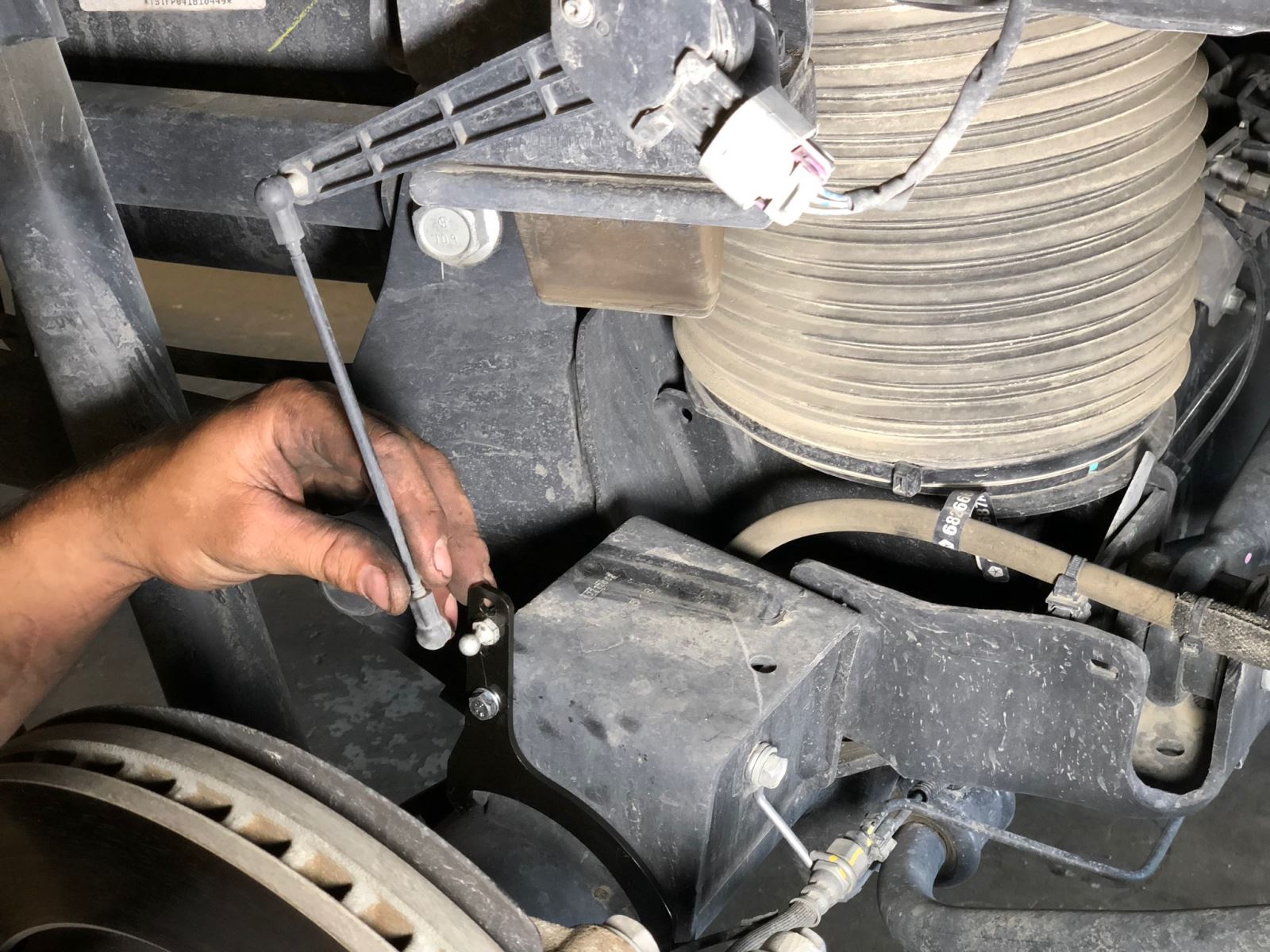

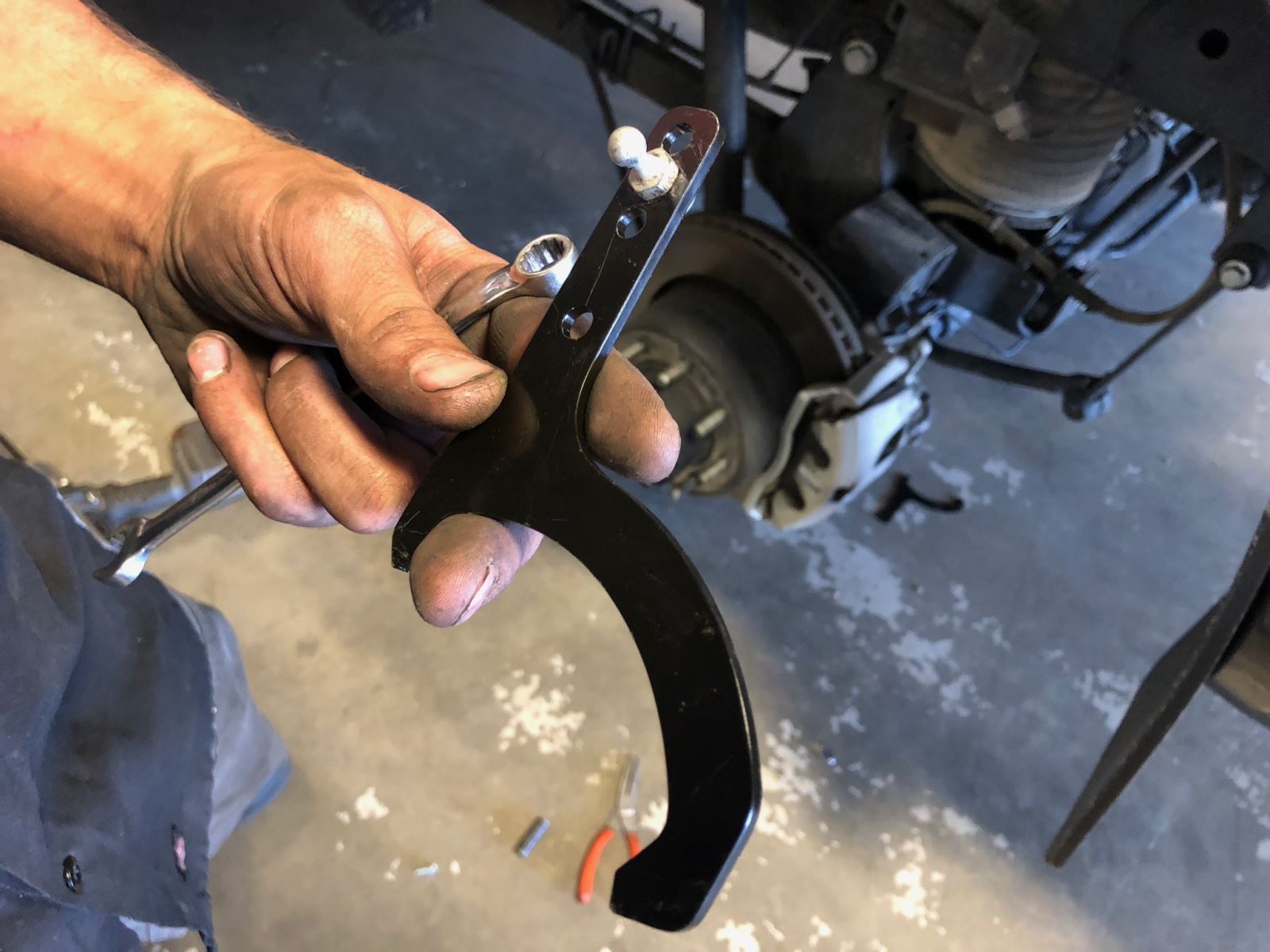

49 Install linkage ball on BDS adapter bracket in center hole. For half-inch ride height changes, you can move the ball into the upper or lower hole.

 IMG_0112

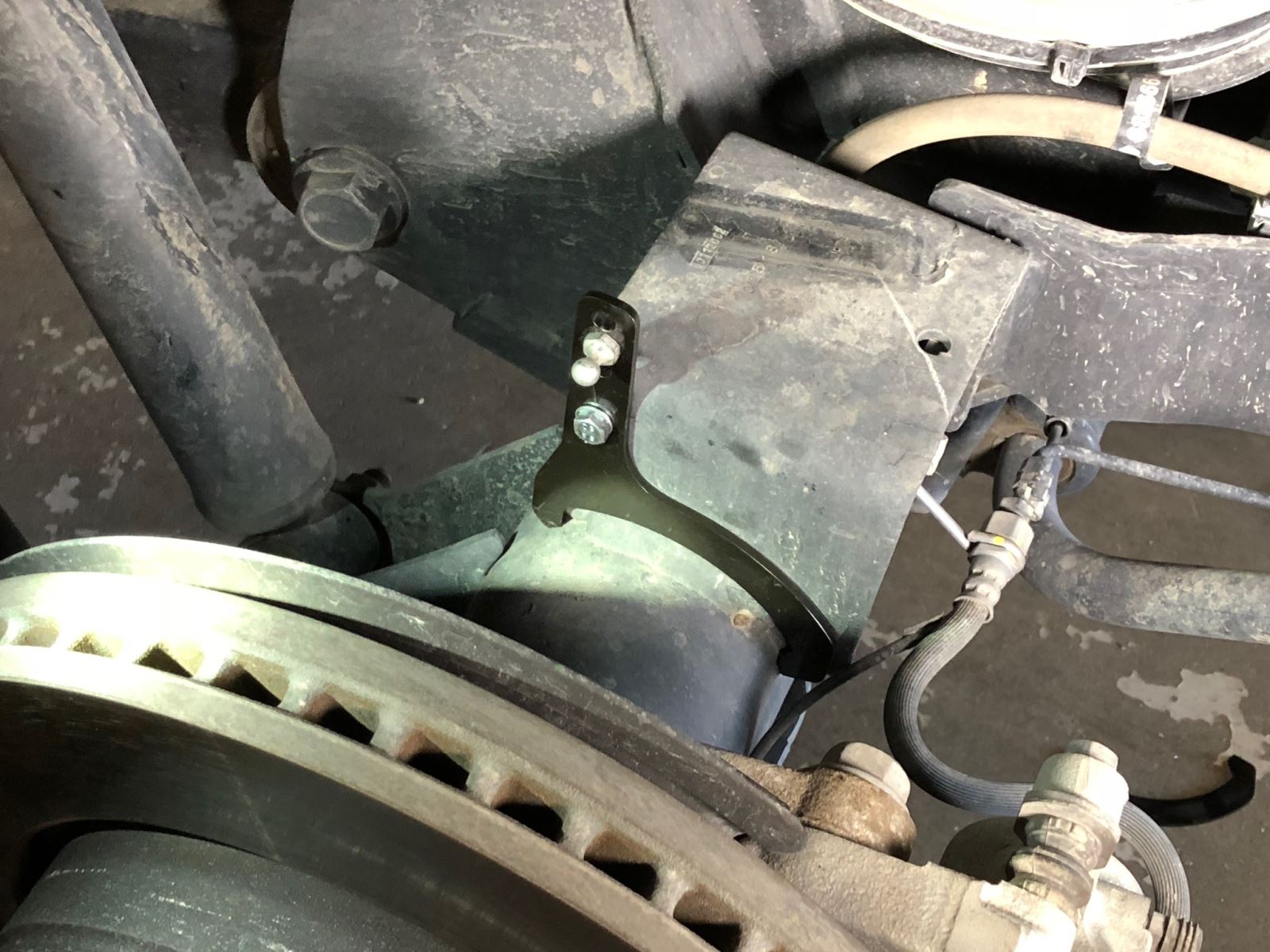

50 Install BDS adapter bracket onto axle.

 IMG_0113

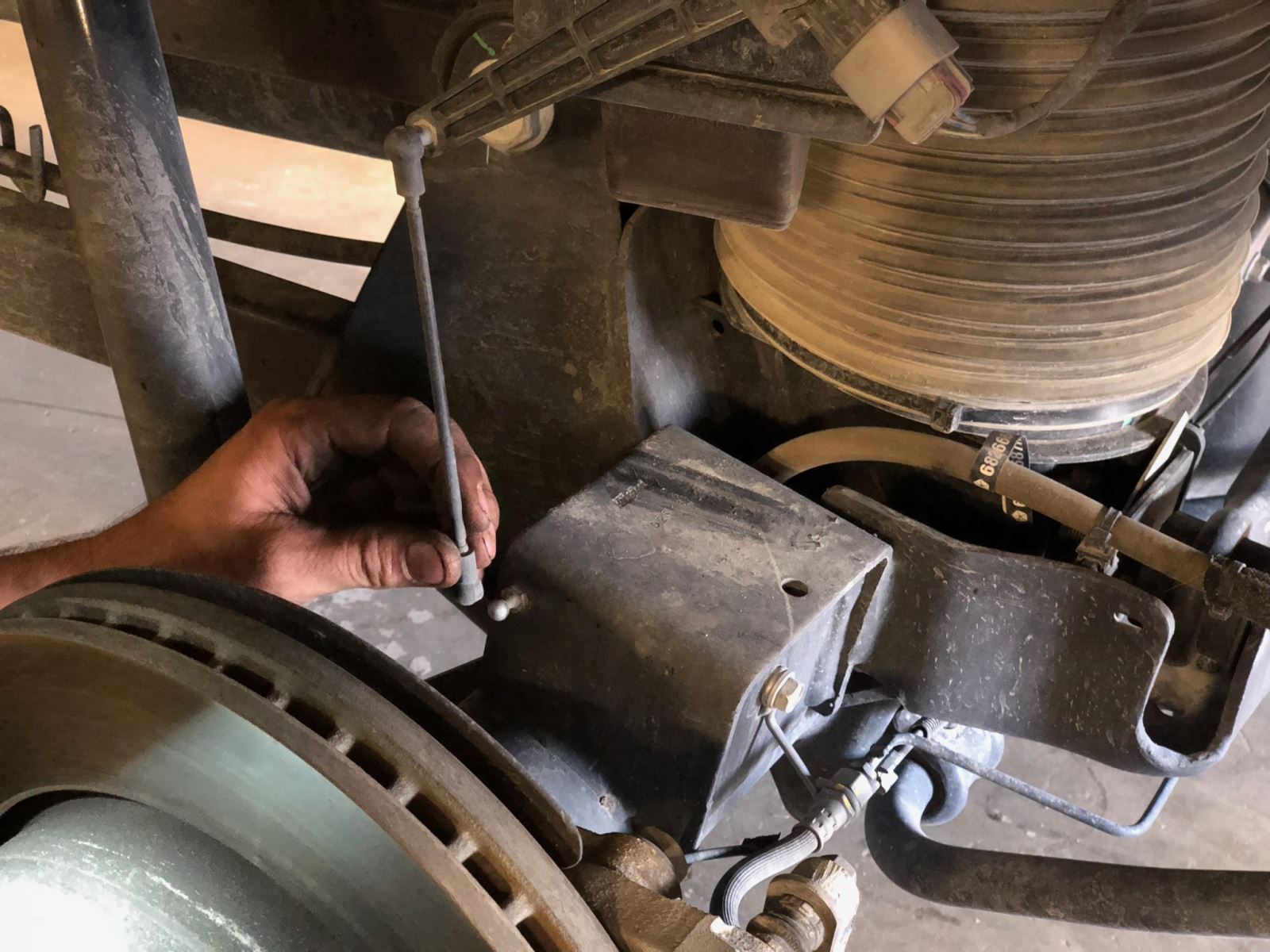

51 Reconnect ride height linkage to ball.

 IMG_0115

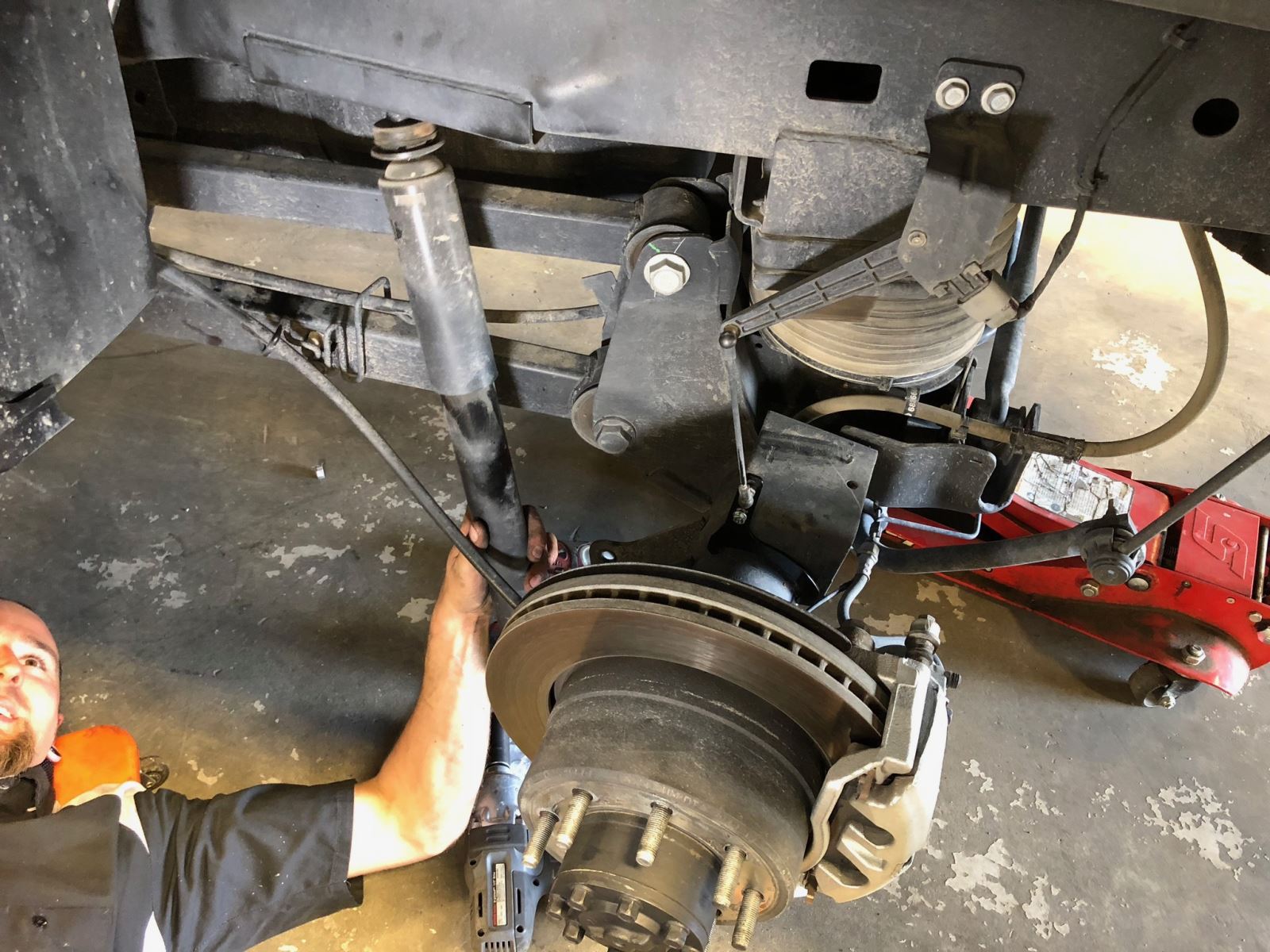

52 Remove factory rear shocks.

 IMG_0116

53 Press the bushings into the lower shock ends. Grease the rubber bushings so they slide in easily. Insert the steel sleeves.

 IMG_0117

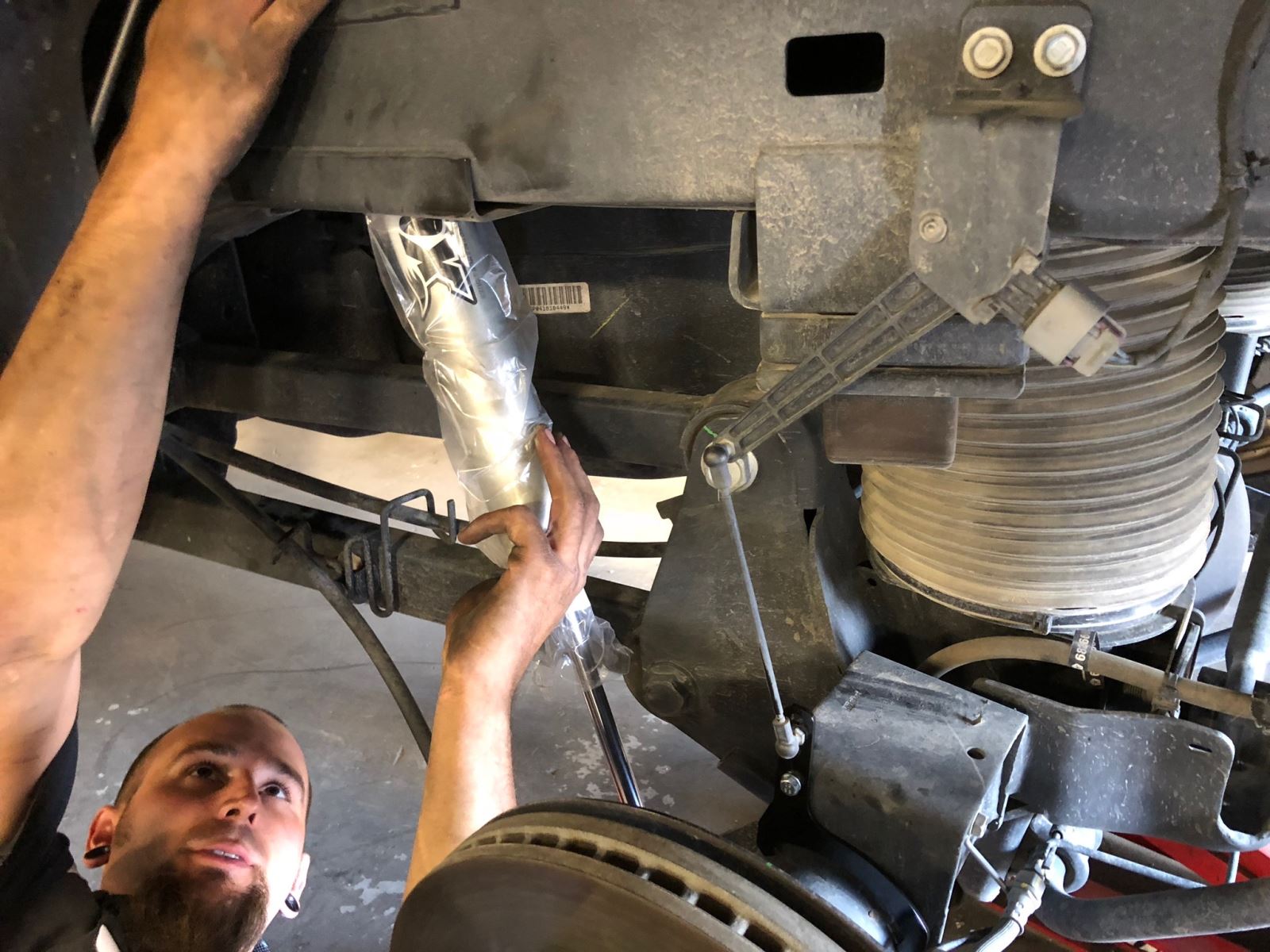

54 Install rear BDS Fox shock absorbers.

 IMG_0125

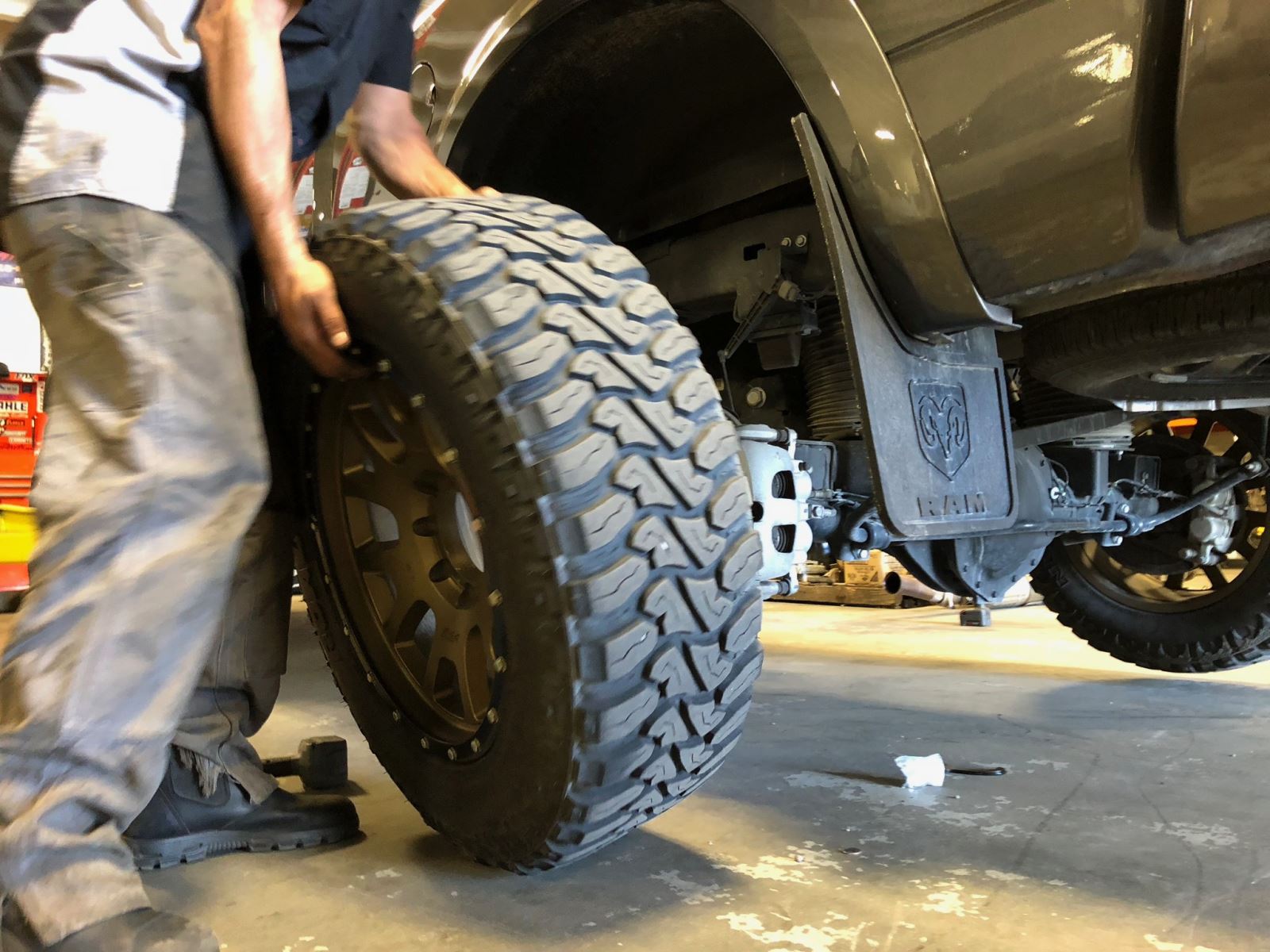

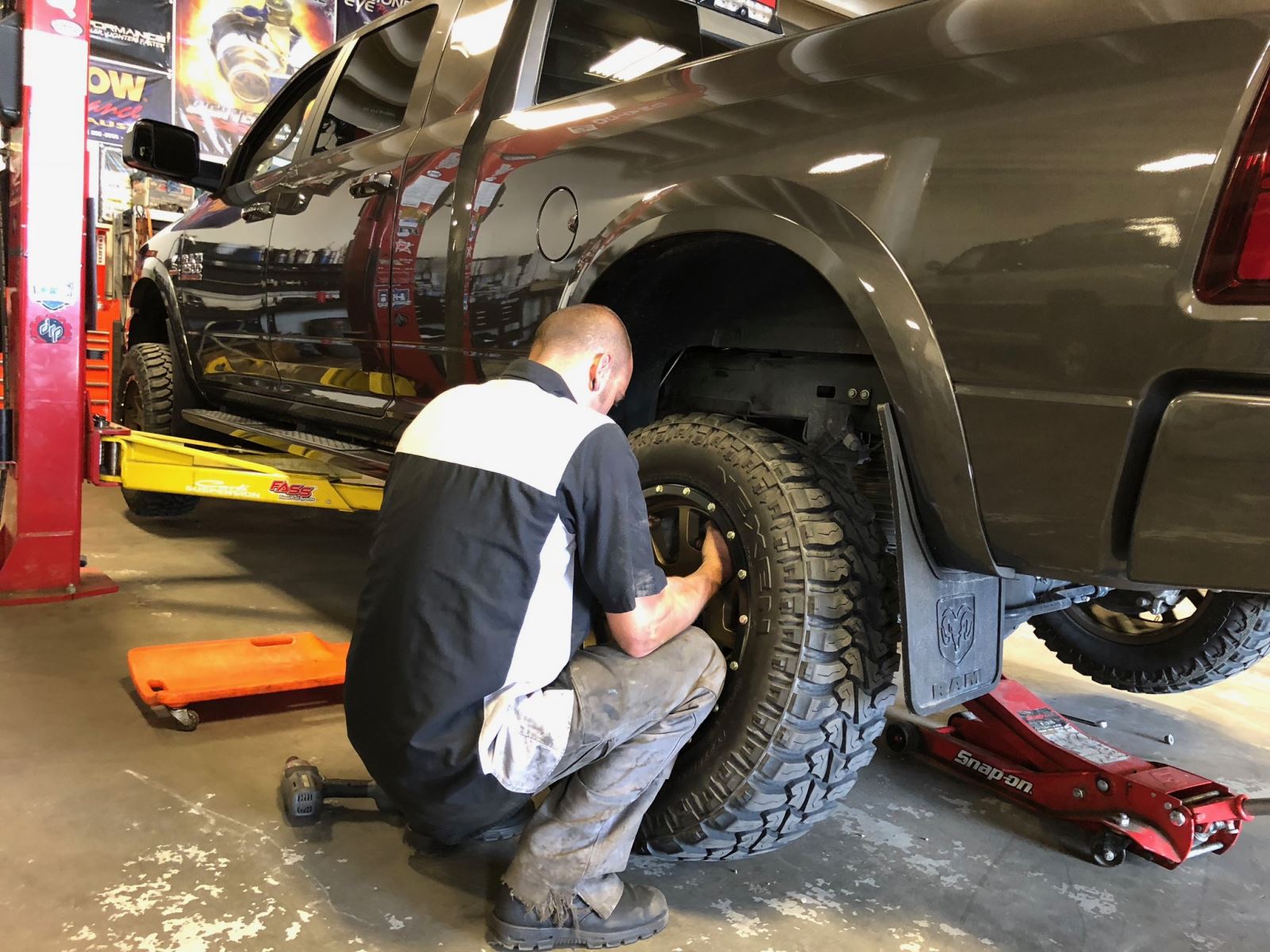

55 Reinstall rear wheels.
